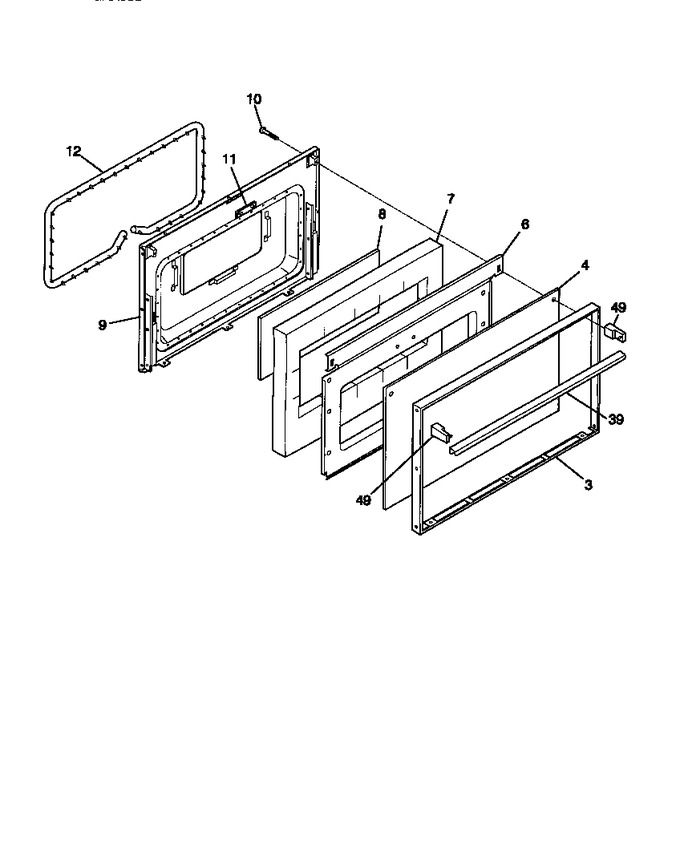

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067804		Trim-oven Door, White		Appelez-nous	-
4	316019710		Glass-oven Door, White, Outer		Appelez-nous	-
6	5303283832		Shield-insulation, White		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
8	316050303		Glass-oven Door, Inner		Appelez-nous	-
9	316066603		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
11	5303015373		Cover-door Liner		Appelez-nous	-
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
39	316545301		Handle-door, White, Oven   (Replaces: 316020202)			Immediately	$ 130.85
49	316020100		End Cap, White, (2)		Appelez-nous	-
*98647	316071600		Plate Warning/caution		Appelez-nous	-
*98648	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*98649	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
*98650	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*98651	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
