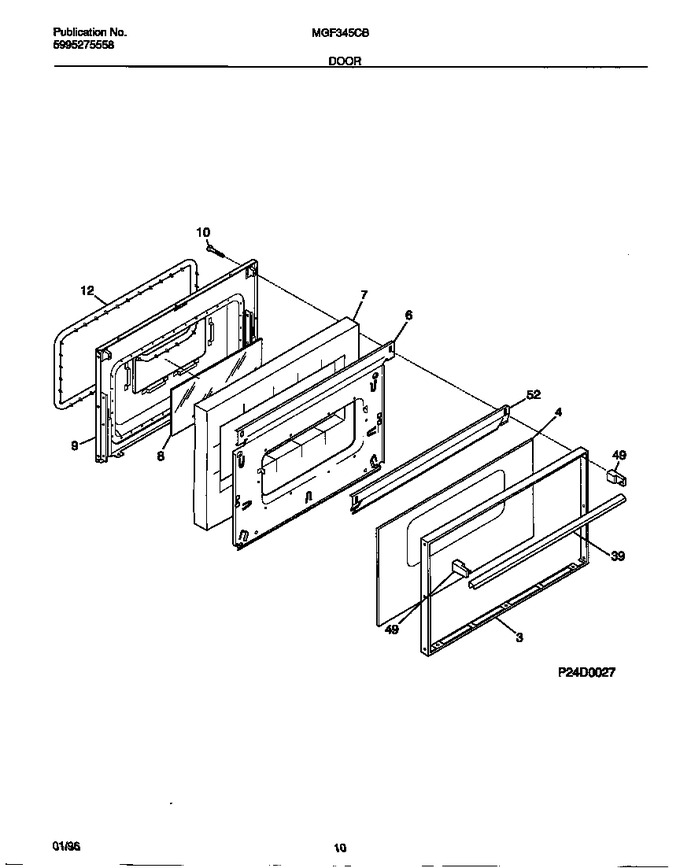

06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067804		Trim-oven Door, White		Appelez-nous	-
4	316089003		Glass-oven Door, White, Outer		Appelez-nous	-
6	316088403		Shield-wool		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
39	316545301		Handle-door, White, Oven   (Replaces: 316020202)			Immediately	$ 130.85
49	316020101		End Cap, White		Appelez-nous	-
52	316081301		Shield-oven Door, White, Top				$ 85.94
*33167	316071600		Plate Warning/caution		Appelez-nous	-
*33168	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*33169	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*33170	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*33171	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*33172	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
