SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

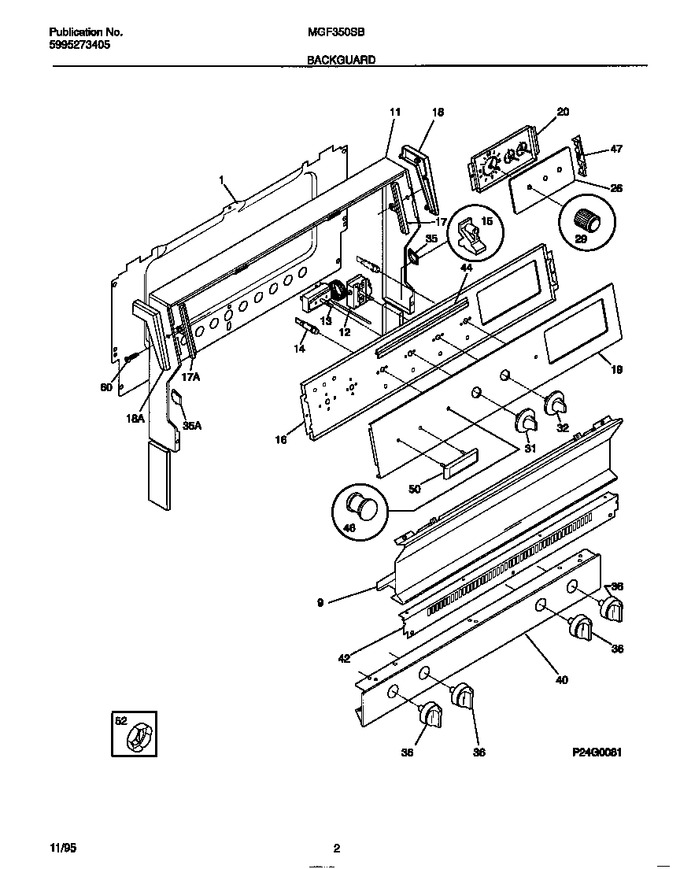

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043501		Trim-splasher,white		Appelez-nous	-
11	3204755		Trim, Wrapper		Appelez-nous	-
12	5303271746		Thermostat-oven				$ 414.28
13	5303212678		Switch Selector		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
17	3204753		Trim-glass Retainer,lh		Appelez-nous	-
17	3204754		Trim-glass Retainer,rh		Appelez-nous	-
18	5303272308		End Cap,black ,rh		Appelez-nous	-
18	5303272307		End Cap,black ,lh		Appelez-nous	-
19	316034537		Panel, Control, Metal		Appelez-nous	-
20	3201694		Clock/timer, Analog 3 Stem		Appelez-nous	-
26	3201695		Lens-clock, Glass		Appelez-nous	-
29	316029000		Knob-clock		Appelez-nous	-
31	316016922		Knob, Selector		Appelez-nous	-
32	316016822		Knob Thermostat		Appelez-nous	-
35	3203076		End Cap,lh		Appelez-nous	-
35	3203077		End Cap,rh		Appelez-nous	-
36	5303288187		Knob-top Valve, (4)		Appelez-nous	-
40	316062328		Panel-manifold		Appelez-nous	-
42	316084300		Trim-vent		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
46	316065800		Lens, Light/lamp, Indicator, Amber		Appelez-nous	-
47	3201700		Retainer, Clock Glass, (2)		Appelez-nous	-
50	316067003		Bezel-nameplate		Appelez-nous	-
60	5303289970		Screw-end Cap Mtg,oval Head ,6-20ab X 1/2		Appelez-nous	-
*51360	3204745		Bushing-ctrl Shaft		Appelez-nous	-
*51361	316001433		Harness, Wiring, Backguard		Appelez-nous	-
*51362	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*51363	5303272555		Clip-backguard		Appelez-nous	-
*51364	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
