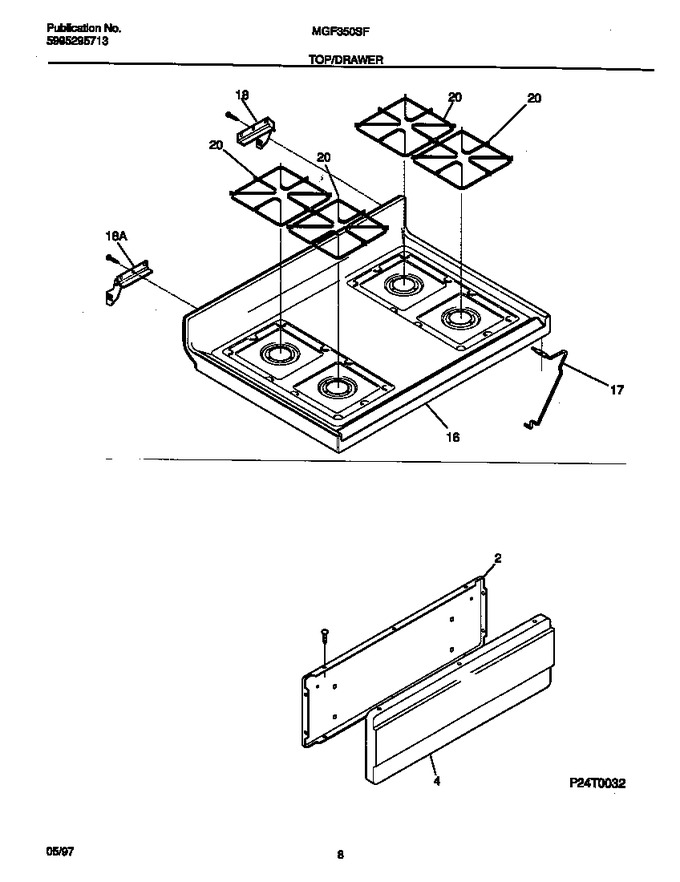

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3131975		Shield-panel		Appelez-nous	-
4	3051201		Panel-dummy, White		Appelez-nous	-
16	5303285552		Main Top, White		Appelez-nous	-
17	316057601		Rod-maintop Support				$ 64.49
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
20	316088900		Grate, Black, (4)		Appelez-nous	-
*65484	3131903		Bumper				$ 55.36
*65485	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*65486	3017527		Foil-aluminum		Appelez-nous	-
*65487	3018702		Plug-button,glide ,(4)		Appelez-nous	-
*65488	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*65489	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*65490	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
