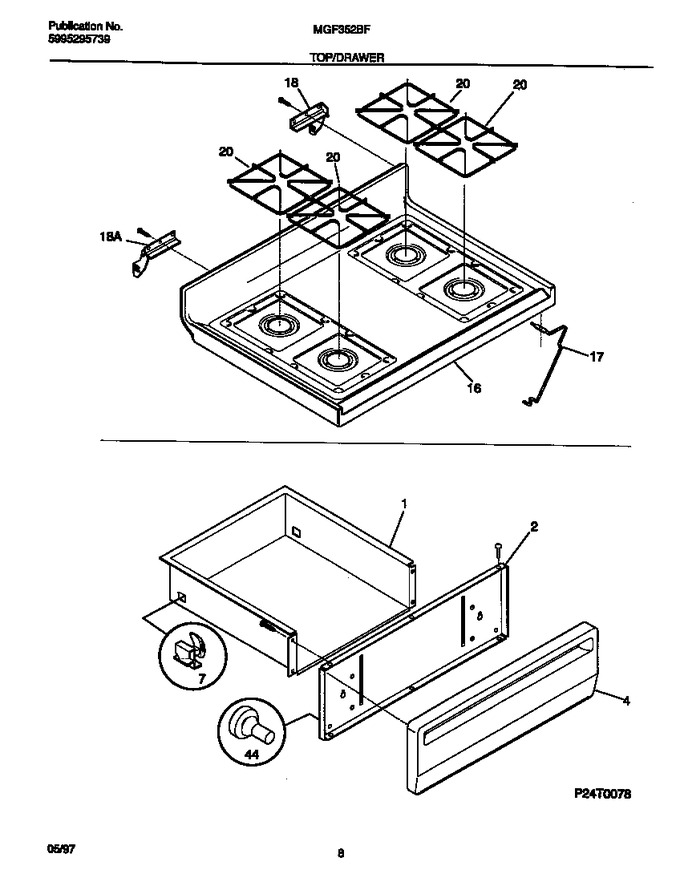

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
4	316021109		Screw-drawer Pnl (not Illustrated)   (Replaces: 316021112)			Immediately	$ 27.50
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303285552		Main Top, White		Appelez-nous	-
17	316057601		Rod-maintop Support				$ 64.49
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
20	316088900		Grate, Black, (4)		Appelez-nous	-
44	3131903		Bumper				$ 55.36
*72164	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*72165	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*72166	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*72167	316089600		Spacer-drawer, (2)		Appelez-nous	-
*72168	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62

    View Diagram in Separate Window       Print Part List
