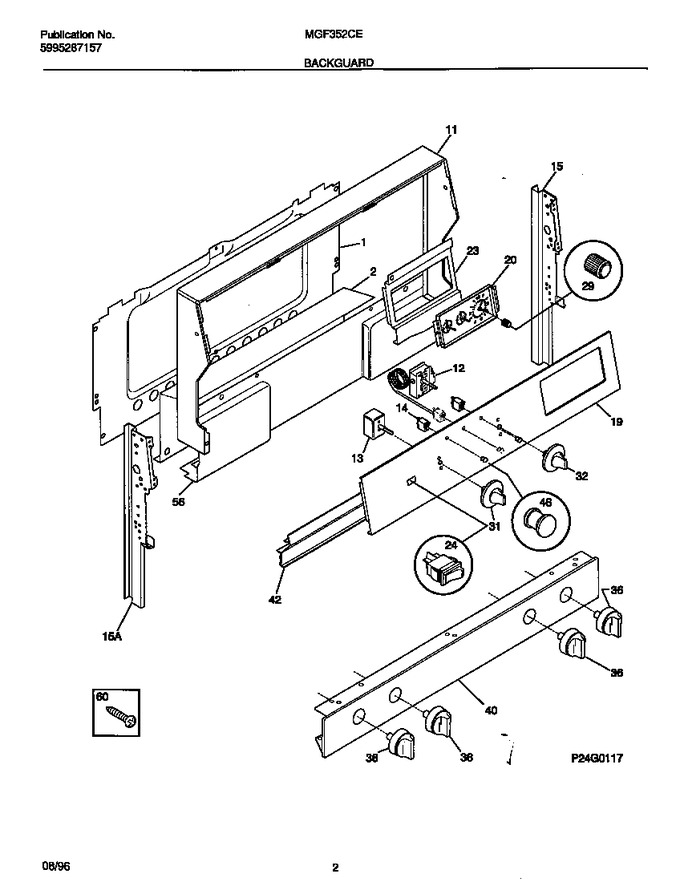

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316051601		Shield-backguard, Inner		Appelez-nous	-
11	316061847		Trim-wrapper, White		Appelez-nous	-
12	316028600		Thermostat-oven		Appelez-nous	-
13	316073300		Switch-selector				$ 154.25
14	316022500		Light/lamp, Indicator, Red,250 V,(2)			Immediately	$ 53.57
15	316023110		Support-backguard, Rh		Appelez-nous	-
15	316023111		Support-backguard, Lh		Appelez-nous	-
19	316082609		Panel-control, Metal, White		Appelez-nous	-
20	316017409		Clock/timer, Analog 3 Stem		Appelez-nous	-
23	316079001		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
29	316029009		Knob-clock/timer, White, (3)		Appelez-nous	-
31	316087258		Knob-selector		Appelez-nous	-
32	316087257		Knob-thermostat		Appelez-nous	-
36	316009046		Knob-top Valve, (4)   (Replaces: 316009009)				$ 51.57
40	316086826		Panel-manifold		Appelez-nous	-
42	316083300		Trim-vent		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
56	316074902		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*06800	316519700		Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl   (Replaces: 316021108)				$ 10.02
*06801	316067004		Bezel-nameplate, White		Appelez-nous	-
*06802	316001444		Harness-wiring, Backguard		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
