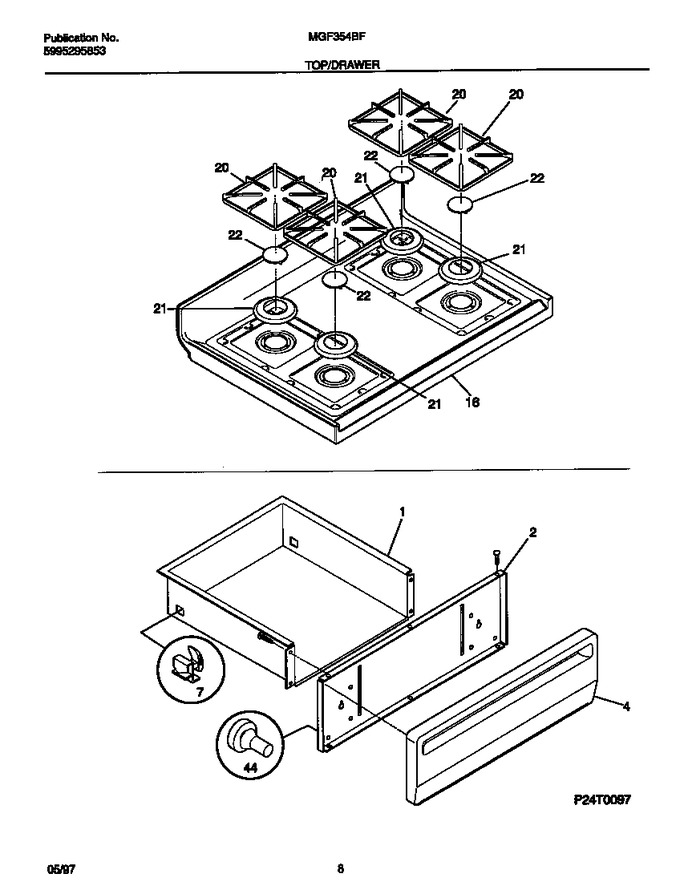

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316021113		Screw-drawer Pnl (not Illustrated)		Appelez-nous	-
4	316084406		Panel-drawer, Almond		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303301547		Main Top, Almond		Appelez-nous	-
20	316088900		Grate, Black, (4)		Appelez-nous	-
21	316011300		Trim Ring-burner, Black, Small, (4)				$ 68.59
22	316010901		Cap-burner, Black, (4)				$ 69.01
44	3131903		Bumper				$ 55.36
*59564	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*59565	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*59566	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*59567	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*59568	316089600		Spacer-drawer, (2)		Appelez-nous	-
*59569	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
