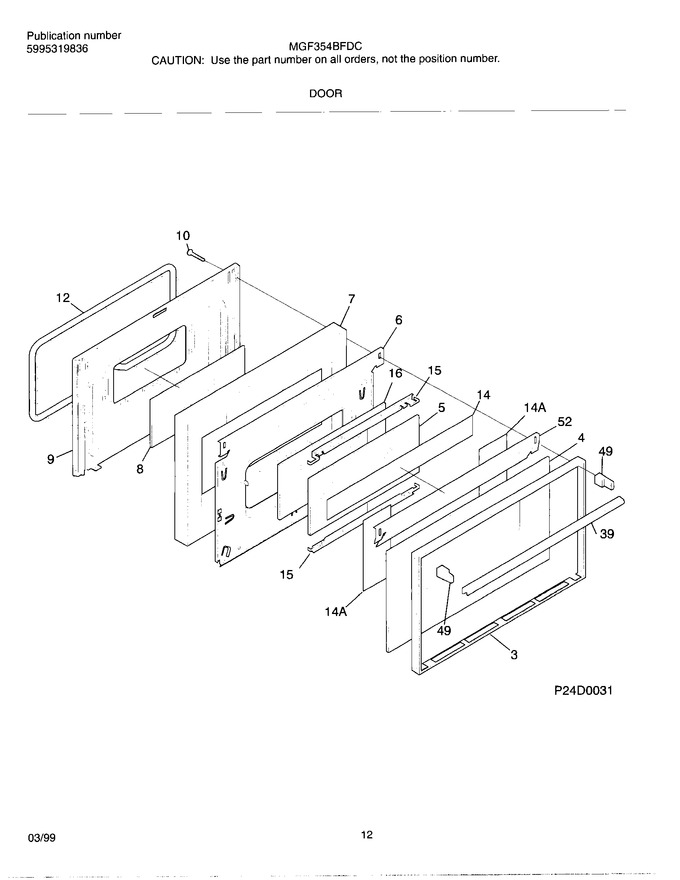

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim-oven Door		Appelez-nous	-
4	316089000		Glass-oven Door, Outer		Appelez-nous	-
5	316088700		Glass,oven Door ,airwash				$ 70.17
6	316088401		Shield-wool		Appelez-nous	-
7	316076403		Insulation-door		Appelez-nous	-
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
12	5303131601		Seal S/c Door				$ 374.63
14	5303208656		Reflector, Aluminum Foil		Appelez-nous	-
15	316081401		Bracket-glass Mtg		Appelez-nous	-
16	316085700		Glass-oven Door, Heat Barrier		Appelez-nous	-
16	316085701		Glass,oven Door ,heat Barrier				$ 131.41
39	316020204		Handle-door, Black, Oven		Appelez-nous	-
39	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
49	3016755		End Cap, Black, (2)		Appelez-nous	-
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
	316065301		Plate Warning/caution		Appelez-nous	-
	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.500 ,burner Box			Immediately	$ 13.46
	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1		Appelez-nous	-
14A	5303208655		Reflector, Aluminum Foil, (2)		Appelez-nous	-
