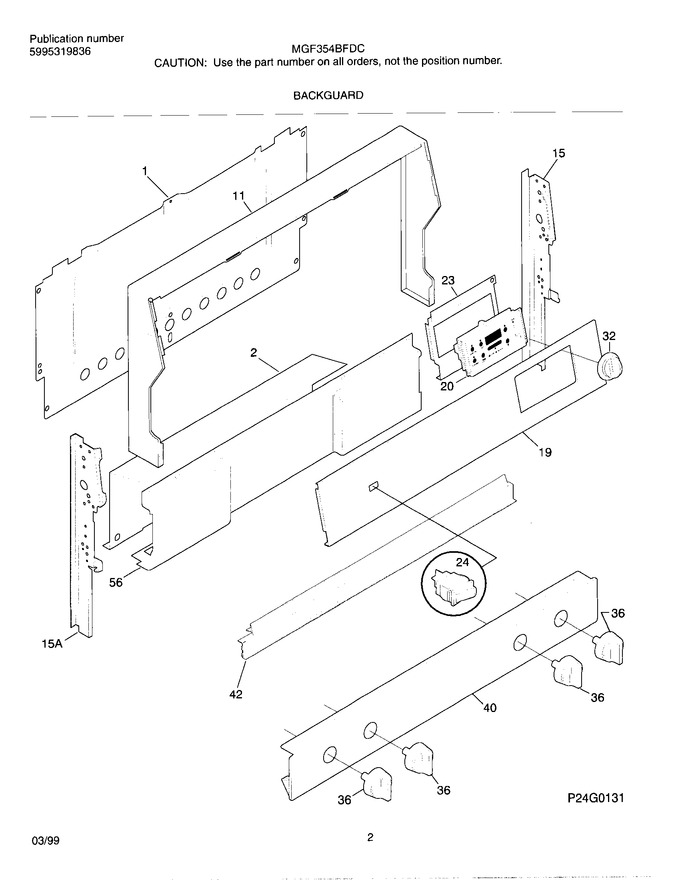

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316051600		Shield,backguard ,inner		Appelez-nous	-
11	316061846		Trim-wrapper, Black		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316082616		Panel-control, Metal		Appelez-nous	-
20	316101508		Overlay-clock		Appelez-nous	-
20	316101102		Clock/timer, Trimline		Appelez-nous	-
23	316100400		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
32	316101301		Knob-thermostat		Appelez-nous	-
36	316009010		Knob, Top Valve, (4)				$ 60.43
40	316086817		Panel-manifold		Appelez-nous	-
42	316083300		Trim-vent		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
	316519700		Screw, Cup Pt, 8-18 X 3/8 Hinge, Ind Lght Brkt, Manifol   (Replaces: 316021108)				$ 10.02
	316096900		Bezel,nameplate ,black				$ 15.38
15A	316023109		Support,backguard ,lh		Appelez-nous	-
