SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

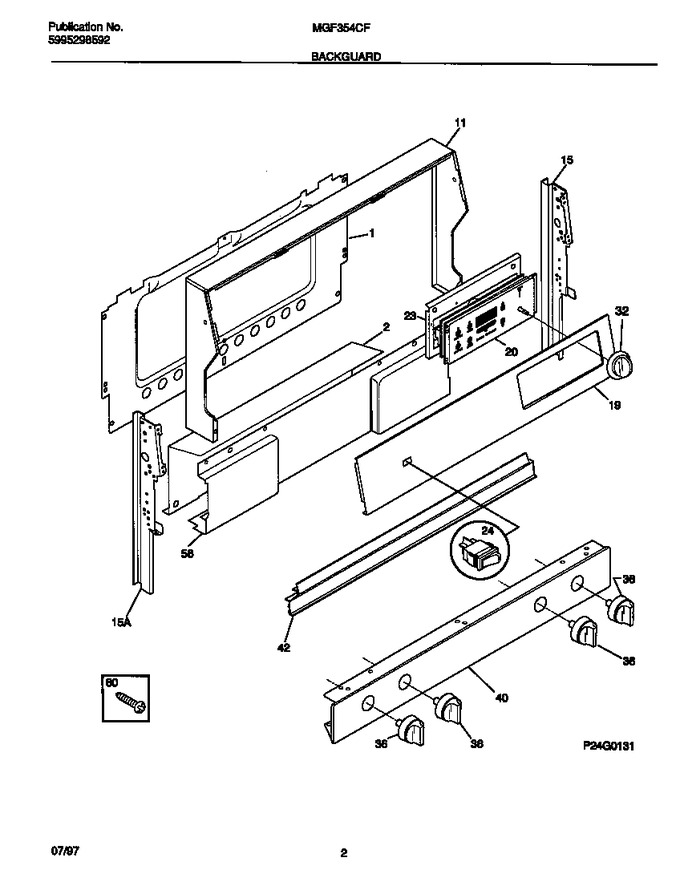

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316051601		Shield-backguard, Inner		Appelez-nous	-
11	316061847		Trim-wrapper, White		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316082617		Panel-control, Metal		Appelez-nous	-
20	316101507		Overlay-clock (not Illustrated)		Appelez-nous	-
20	316101102		Clock/timer, Trimline		Appelez-nous	-
23	316100400		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
32	316101300		Knob-thermostat		Appelez-nous	-
36	316009036		Knob-top Valve, (4)		Appelez-nous	-
40	316086818		Panel-manifold		Appelez-nous	-
42	316083300		Trim-vent		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*86760	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*86761	316096901		Nameplate, White				$ 9.82

    View Diagram in Separate Window       Print Part List
