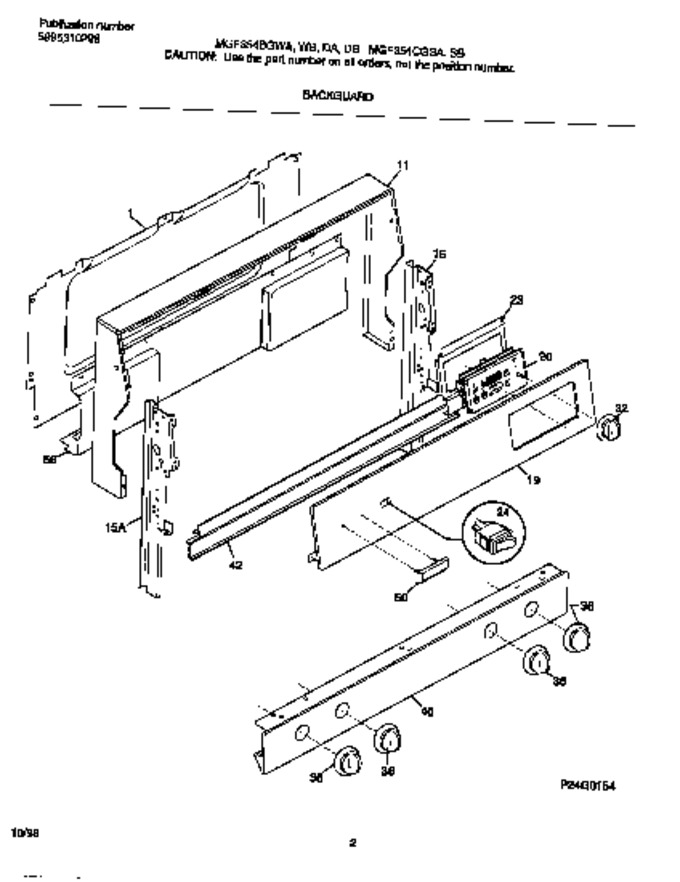

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
11	316061857		Trim-wrapper Tex Gas White,textured ,		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316082651		Panel-control,metal ,white		Appelez-nous	-
20	316101102		Clock/timer, Trimline		Appelez-nous	-
23	316100400		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
32	316101401		Knob,thermostat ,white		Appelez-nous	-
36	316109503		Knob-top Valve White,white		Appelez-nous	-
40	316009285		Panel-manifold		Appelez-nous	-
42	316083300		Trim-vent		Appelez-nous	-
50	316096901		Bezel-nameplate, White				$ 9.82
56	316074907		Deflector-flue, Black		Appelez-nous	-
*64801	316101507		Overlay-clock		Appelez-nous	-
*64802	316519700		Screw, Cup Pt, 8-18 X 3/8, Hinge   (Replaces: 316021108)				$ 10.02
*64803	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
