SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

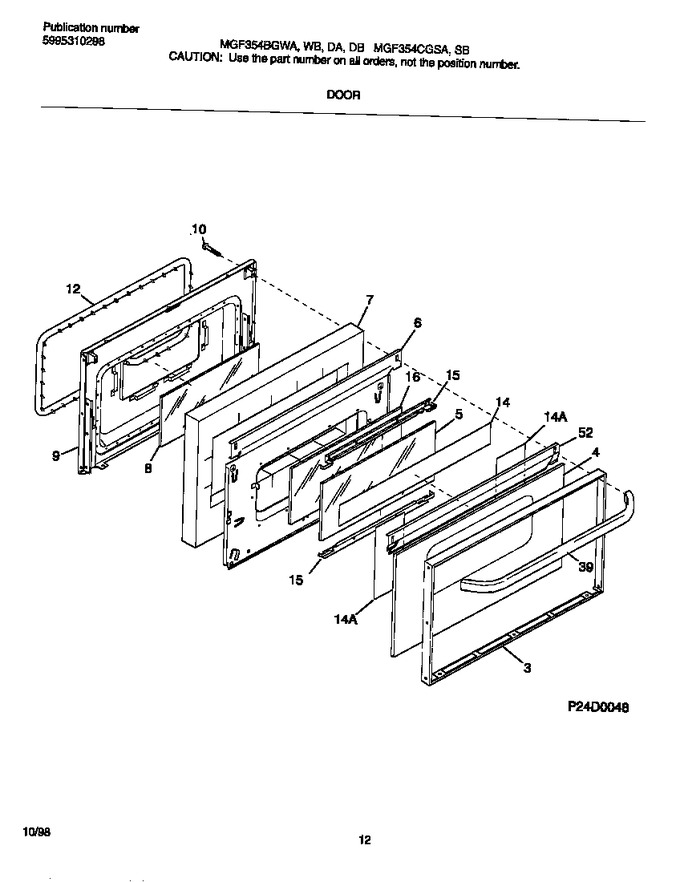

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067804		Trim-oven Door, White		Appelez-nous	-
4	316089005		Glass-oven Door, White, Outer		Appelez-nous	-
5	316088700		Glass-oven Door, Inner				$ 70.17
6	316088401		Shield-wool		Appelez-nous	-
7	316076403		Insulation-door		Appelez-nous	-
8	316088600		Glass-oven Door, Airwash				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
12	5303131601		Seal-oven Door				$ 374.63
14	3131360		Reflector, Aluminum Foil (2)		Appelez-nous	-
14	3131361		Reflector, Aluminum Foil		Appelez-nous	-
15	316081403		Bracket,glass Mtg		Appelez-nous	-
16	316085701		Glass,oven Door ,heat Barrier				$ 131.41
39	5304530039		Handle-door, White, Oven   (Replaces: 316091115)			Immediately	$ 167.43
52	316081301		Shield-oven Door, White, Top				$ 85.94
*64827	316008401		Washer,3/4 X 1/4 ,steel ,(2)				$ 11.34
*64828	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*64829	316065301		Plate Warning/caution		Appelez-nous	-
*64830	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*64831	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*64832	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46

    View Diagram in Separate Window       Print Part List
