SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

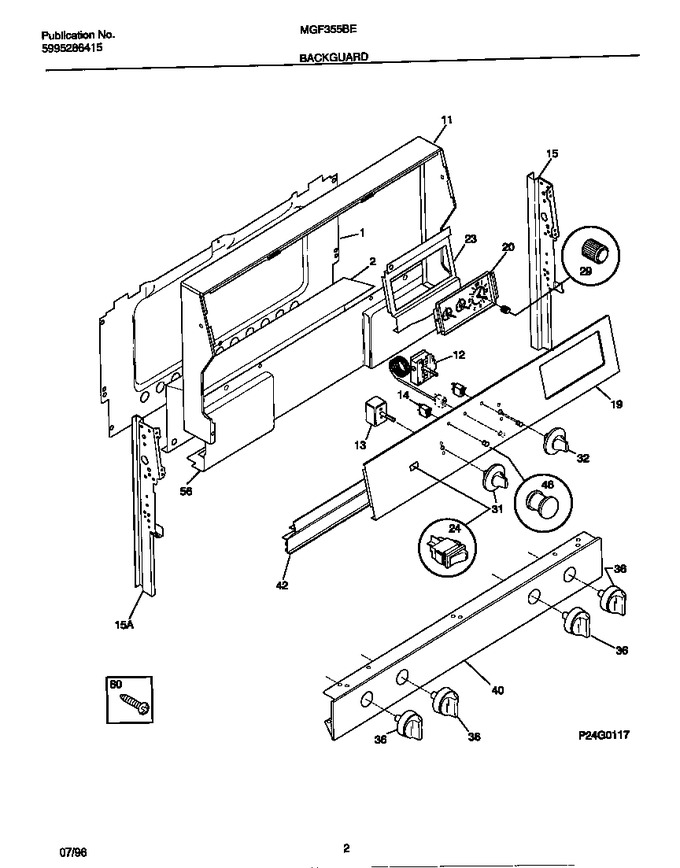

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316051601		Shield-backguard, Inner		Appelez-nous	-
11	316061846		Trim-wrapper, Black		Appelez-nous	-
12	316028600		Thermostat-oven		Appelez-nous	-
13	316073300		Switch-selector				$ 154.25
14	316022500		Light/lamp, Indicator, Red,250 V,(2)			Immediately	$ 53.57
15	316023111		Support-backguard, Lh		Appelez-nous	-
15	316023110		Support-backguard, Rh		Appelez-nous	-
19	316082610		Panel-control, Metal		Appelez-nous	-
20	316017408		Clock/timer, Analog 3 Stem		Appelez-nous	-
23	316079001		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black   (Replaces: 316005602)			Immediately	$ 11.38
29	316029008		Knob-clock				$ 40.16
31	316087256		Knob-selector		Appelez-nous	-
32	316087255		Knob-thermostat		Appelez-nous	-
36	316009010		Knob, Top Valve, (4)				$ 60.43
40	316086817		Panel-manifold		Appelez-nous	-
42	316083300		Trim-vent		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
56	316074902		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*02240	316067003		Bezel-nameplate		Appelez-nous	-
*02241	316519700		Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl   (Replaces: 316021108)				$ 10.02
*02242	316001444		Harness-wiring, Backguard		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
