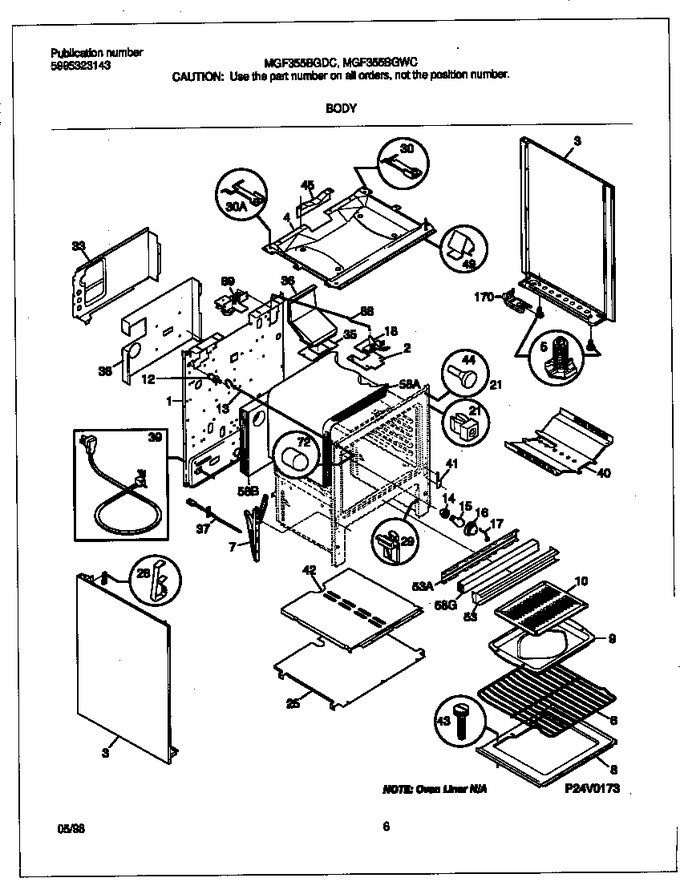

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029412		Back-main		Appelez-nous	-
2	3131314		Shield-oven-top		Appelez-nous	-
4	316011912		Burner Box, Black		Appelez-nous	-
5	316107300		Screw-leveling		Appelez-nous	-
6	316067902		Rack,oven			Immediately	$ 103.10
7	316007002		Hinge-oven Door, (2)				$ 244.07
8	5303212540		Panel-oven Bottom		Appelez-nous	-
9	316073800		Pan-broiler		Appelez-nous	-
10	3205234		Insert, Broiler Pan		Appelez-nous	-
12	316027701		Switch-oven Light		Appelez-nous	-
13	316026800		Rod-light Switch/door				$ 36.86
14	316116400		Socket-light			Immediately	$ 56.10
15	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
18	316036300		Latch-door		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
25	5303288580		Shield-heat, Lower		Appelez-nous	-
28	3011813		Clip,wire ,bodyside				$ 14.79
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
30	316059201		Bracket-main Top, Lh		Appelez-nous	-
30	316059200		Bracket-main Top, Rh		Appelez-nous	-
33	316014401		Shield, Rear Wall		Appelez-nous	-
35	316542102		Gasket,flue   (Replaces: 316116600)				$ 12.13
36	5303272844		Flue		Appelez-nous	-
37	5304497424		Probe-oven Temp   (Replaces: 316111202)			Immediately	$ 38.32
38	316051700		Shield-heat		Appelez-nous	-
39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
40	3200836		Shield-heat Baffle		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
42	5303288578		Shield-bake Burner				$ 156.19
43	316282700		Screw-oven Bottom, 8-18 X 1.438   (Replaces: 3131732)				$ 9.93
44	3131903		Bumper				$ 55.36
49	3205821		Clip-spring Mtg   (Replaces: 3051124)			Immediately	$ 35.44
53	5303288579		Shield,main Front		Appelez-nous	-
53	08067992		Shield-insulation		Appelez-nous	-
58	316047708		Insulation,2`` ,oven Wrapper				$ 222.56
58	316054200		Insulation, 2`` ,oven Back		Appelez-nous	-
58	08067973		Insulation, Main Front				$ 51.74
72	5303285692		Cover-light/switch Rod		Appelez-nous	-
88	316026400		Rod-latch, Auto				$ 21.79
89	316028101		Motor-latch/lock		Appelez-nous	-
*97288	08067757		Cover Plate		Appelez-nous	-
*97289	316001632		Harness-wiring, Chassis		Appelez-nous	-
*97290	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*97291	316064600		Support,oven Bottom				$ 18.95
*97292	5303288570		Screw-heat Shield, Hd Shldr Sqdr, 8-18 X 1/2		Appelez-nous	-
170A	316112005		Anti-tip Bracket   (Replaces: 316107200)			Immediately	$ 18.91
170B	316116000		Screw-anti Tip, 1.75`` Concrete				$ 12.89
3A	316081036		Panel,bodyside ,almond ,rh		Appelez-nous	-
3B	316081037		Panel,bodyside ,almond ,lh		Appelez-nous	-
