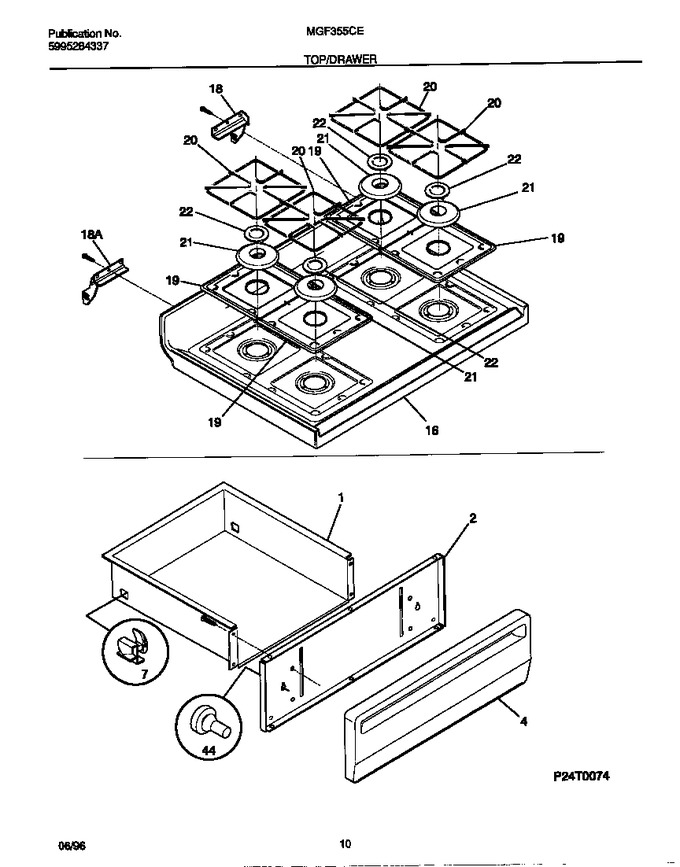

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
19	316011400		Pan-burner, (4)		Appelez-nous	-
20	316088901		Grate, (4)				$ 147.84
21	316035103		Trim Ring, Burner, Dark Grey		Appelez-nous	-
22	316010903		Cap-burner, Grey, (4)				$ 118.49
44	3131903		Bumper				$ 55.36
*09565	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*09566	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*09567	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*09568	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
16A	5303301546		Main Top, White		Appelez-nous	-
16B	5303271891		Gusset-top Mtg, Rh (not Illustrated)		Appelez-nous	-
16C	5303271892		Gusset-top Mtg, Lh (not Illustrated)		Appelez-nous	-
4A	316084405		Panel-drawer, White		Appelez-nous	-
4B	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4C	316021109		Screw-drawer Pnl (not Illustrated)   (Replaces: 316021112)			Immediately	$ 27.50
