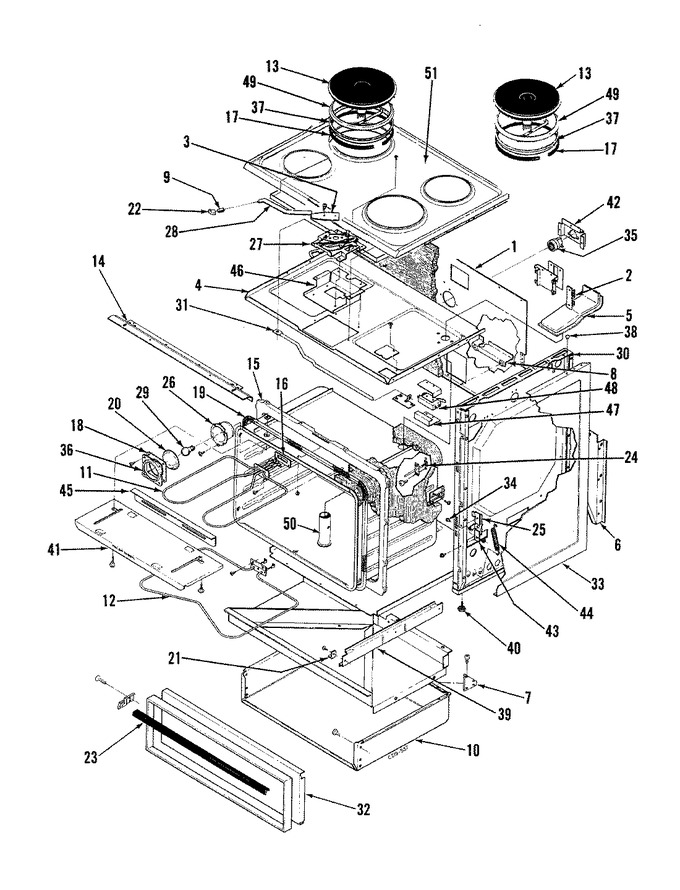

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601W120-20 | Baffle Air Duct | 01 |
|
- | ||||
| 1 | 4002F067-20 | Back, Main | 01 |
|
- | ||||
| 2 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 01 |
|
Immediately | $ 31.65 | |||
| 3 | 7116P002-60 | Bolt, Door Lock | 01 |
|
- | ||||
| 4 | 4011F078-23 | Box, Burner | 01 |
|
- | ||||
| 5 | 4006W025-45 | Box, Vent | 01 |
|
- | ||||
| 6 | 0277264 | Brace, Back-left | 01 |
|
- | ||||
| 6 | 0277265 | Brace, Back-right | 01 |
|
- | ||||
| 6 | 3802F046-80 | Brace, Main Top | 01 |
|
- | ||||
| 6 | 0277257 | Brace | 01 |
|
- | ||||
| 7 | 3801F093 | Bracket | 01 |
|
- | ||||
| 7 | 3802F044-51 | Brace, Drawer | 01 |
|
- | ||||
| 8 | 7111P002-60 | Clamp, Wire 3/4 | 01 |
|
- | ||||
| 8 | 8002P014-60 | Catch | 01 |
|
- | ||||
| 8 | 3801F101-80 | Bracket, Tie Down | 01 |
|
- | ||||
| 9 | 7112P003-60 | Clip, Latch Handle | 01 |
|
- | ||||
| 9 | 4005F182-20 | Cover, Wire Housing | 01 |
|
- | ||||
| 9 | 4005F186-20 | Cover, Sensor Probe | 01 |
|
- | ||||
| 9 | 7120P074-60 | Cover, Front Floor | 01 |
|
- | ||||
| 10 | 0384227 | Drawer Assy. | 01 |
|
- | ||||
| 11 | 7406P032-60 | Element, Broil | 01 |
|
- | ||||
| 12 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 01 |
|
$ 133.20 | ||||
| 13 | WP3147131 | Element (6``) (Replaces: 7406P023-60) | 01 |
|
$ 244.76 | ||||
| 13 | 7406P024-60 | Element, Solid Disc (8``) | 01 |
|
- | ||||
| 14 | 4012F017-80 | Front, Burner Box Bottom | 01 |
|
- | ||||
| 15 | 2201F033-23 | Front, Oven | 01 |
|
- | ||||
| 16 | 7201P003-60 | Gasket, Element | 01 |
|
- | ||||
| 17 | 7212P008-60 | Seal, Silicone (not Good Part | 01 |
|
- | ||||
| 18 | 7201P015-60 | Gasket, Lamp Retainer | 01 |
|
- | ||||
| 18 | 7201P014-60 | Gasket, Housing | 01 |
|
- | ||||
| 19 | 7201P001-60 | Gasket, Oven | 01 |
|
- | ||||
| 20 | 7902P057-60 | Glass, Lamp Guard | 01 |
|
- | ||||
| 21 | 8016P009-60 | Glide, Drawer | 49 |
|
- | ||||
| 21 | 8016P004-60 | Glide, Drawer | 49 |
|
- | ||||
| 21 | 8016P004-60 | Glide, Drawer | 01 |
|
- | ||||
| 21 | 8016P005-60 | Glide, Front | 01 |
|
- | ||||
| 22 | 7701P003-60 | Handle, Door Lock | 01 |
|
- | ||||
| 24 | 5170A007-60 | Harness, Sensor | 01 |
|
- | ||||
| 24 | 12001656 | Probe, Oven Sensor (Replaces: 7430P003-60) | 01 |
|
Immediately | $ 39.55 | |||
| 24 | 12001656 | Probe, Oven Sensor (Replaces: 7430P005-60) | 04 |
|
Immediately | $ 39.55 | |||
| 25 | 3418F030-34 | Hinge, Oven Door (rt) | 01 |
|
- | ||||
| 25 | 3418F029-34 | Hinge, Oven Door (lt) | 01 |
|
- | ||||
| 26 | Y0507229 | Insert | 01 |
|
- | ||||
| 26 | 0537253 | Housing, Lamp | 01 |
|
- | ||||
| 27 | 8002E002 | Catch | 01 |
|
- | ||||
| 28 | 8009P006-60 | Lever, Door Lock | 01 |
|
- | ||||
| 29 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 01 |
|
Immediately | $ 1.98 | |||
| 30 | 4009W029-20 | Lining, Inner Side | 01 |
|
- | ||||
| 31 | 7807P004-60 | Link, Switch | 01 |
|
- | ||||
| 31 | 4396923 | Pan, Broiler (Replaces: Y0663202) | 01 |
|
Immediately | $ 52.04 | |||
| 32 | 0684316N | + Panel, Service | 01 |
|
- | ||||
| 33 | 2618F073-71 | Panel, Side (wht)----na | 47 |
|
- | ||||
| 33 | 2618F052-71 | Panel, Side (wht) | 01 |
|
- | ||||
| 34 | 7113P002-60 | Pin, Hinge | 01 |
|
$ 9.05 | ||||
| 34 | 3605F153-80 | Plate, Conduit | 01 |
|
- | ||||
| 34 | 3605F148-80 | Plate, Conduit | 33 |
|
- | ||||
| 34 | 7801P004-60 | Rack | 01 |
|
- | ||||
| 35 | 3605F146-51 | Plate, Conduit Reinforcement | 33 |
|
$ 6.06 | ||||
| 35 | 7408P002-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 35 | W10124350 | Not Required Part Or See Note (plate) Not Required | 01 |
|
- | ||||
| 36 | 0749227 | Retainer, Lampguard | 01 |
|
- | ||||
| 37 | Y7201P02160 | Gasket, Ring (6``) | 01 |
|
- | ||||
| 37 | Y7201P02260 | Gasket, Ring (8``) | 01 |
|
- | ||||
| 38 | 8010P048-60 | Spacer, Main Top | 01 |
|
- | ||||
| 38 | 8003P007-60 | Bumper, Button | 47 |
|
- | ||||
| 39 | 3406F027-51 | Runner, Outer | 49 |
|
- | ||||
| 39 | 3406F026-80 | Runner, Inner | 49 |
|
- | ||||
| 39 | 3406F025-51 | Runner,outer | 01 |
|
- | ||||
| 39 | 3406F020-80 | Runner, Inner | 01 |
|
- | ||||
| 40 | 1986204 | Screw, Special | 01 |
|
- | ||||
| 40 | 7208P016-60 | Seal, Silicon | 01 |
|
- | ||||
| 41 | 3604F092-45 | Shield, Broil | 01 |
|
- | ||||
| 42 | 3801F024-51 | Bracket | 01 |
|
- | ||||
| 43 | 1013214 | Ring, Snap | 01 |
|
- | ||||
| 44 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 01 |
|
$ 16.55 | ||||
| 45 | 8004P013-60 | Clip, Broil Element Support | 01 |
|
- | ||||
| 46 | 3807F195 | Support, Latch | 01 |
|
- | ||||
| 47 | 7403P166-60 | Switch, Hi Limit Glass | 01 |
|
- | ||||
| 47 | 3807F193 | Support, Door Lock Switch | 01 |
|
- | ||||
| 47 | 7403P084-60 | Switch, Inf. Control | 01 |
|
- | ||||
| 47 | 7403P085-60 | Switch, Inf. Control | 01 |
|
- | ||||
| 48 | 7403P099-60 | Switch, Ovn Lock Asy----na | 01 |
|
- | ||||
| 49 | 3608F002-00 | Trim, Ring Lg | 01 |
|
- | ||||
| 49 | 3608F001-00 | Ring, Burner (small) | 01 |
|
- | ||||
| 50 | 8026P011-60 | Tube, Oven Vent | 01 |
|
- | ||||
| 51 | 2002W032-01 | Top Assy, Main | 01 |
|
- |
