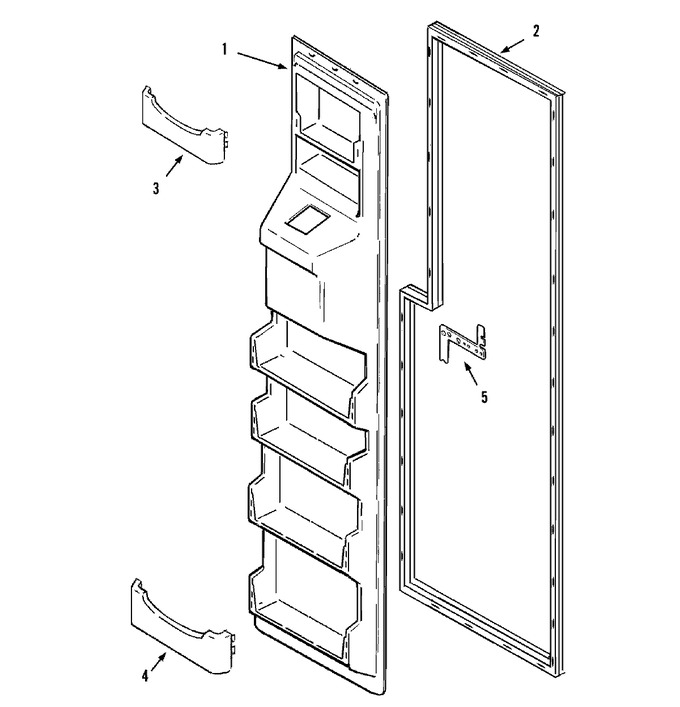

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005388		Screw	10			$ 11.43
1	61005367		Insert, Liner Support (side)	10	Appelez-nous	-
1	61005366		Insert, Liner Support(top/btm)	10	Appelez-nous	-
1	61005365		Liner, Frz. Door	10	Appelez-nous	-
2	61005908		Seal, Frz. Door (blk)	10	Appelez-nous	-
3	61005369		Front, Pick-off (upr)	10	Appelez-nous	-
4	61005371		Front, Pick-off (lwr)	10	Appelez-nous	-
5	61005466		Shim, Door Seal (blk)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
