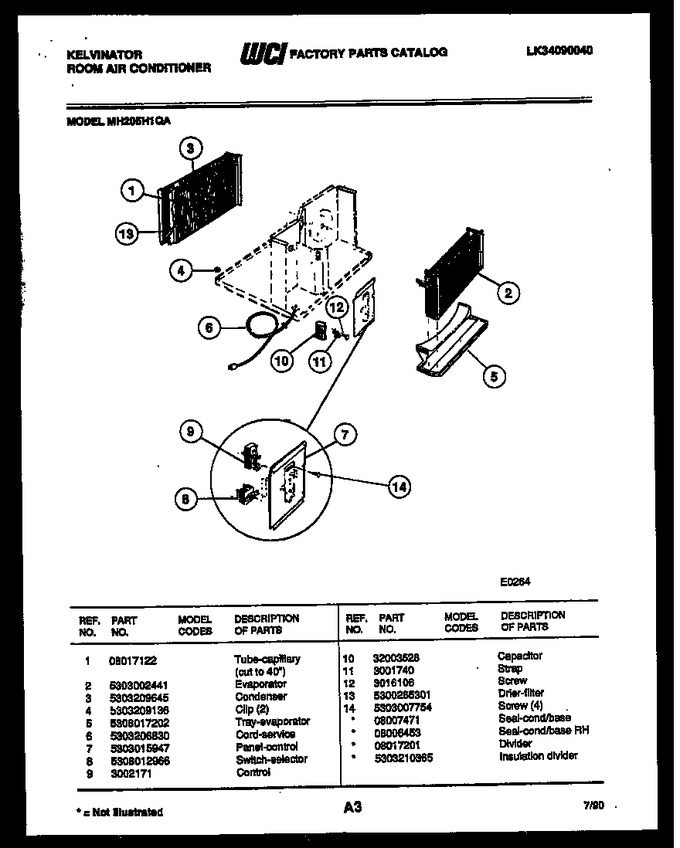

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08017122 | Tube-capillary (cut To 40``) |
|
- | |||||
| 2 | 5303002441 | Evaporator |
|
- | |||||
| 3 | 5303209645 | Condenser |
|
- | |||||
| 4 | 5303209136 | Clip (2) |
|
- | |||||
| 5 | 5308017202 | Tray-evaporator |
|
- | |||||
| 6 | 5303206830 | Cord-service |
|
- | |||||
| 7 | 5303015947 | Panel-control |
|
- | |||||
| 8 | 5308012966 | Switch-selector |
|
- | |||||
| 9 | 3002171 | Control |
|
- | |||||
| 10 | 32003526 | Capacitor |
|
- | |||||
| 11 | 3001740 | Strap |
|
- | |||||
| 12 | 3016106 | Screw |
|
- | |||||
| 13 | 5300265301 | Drier-filter |
|
$ 284.30 | |||||
| 14 | 5303007754 | Screw (4) |
|
- | |||||
| *17476 | 08006453 | Seal-cond/base Rh |
|
- | |||||
| *17476 | 08007471 | Seal Condenser |
|
- | |||||
| *17477 | 08017201 | Divider |
|
- | |||||
| *17477 | 5303210365 | Insulation-divider |
|
- |
