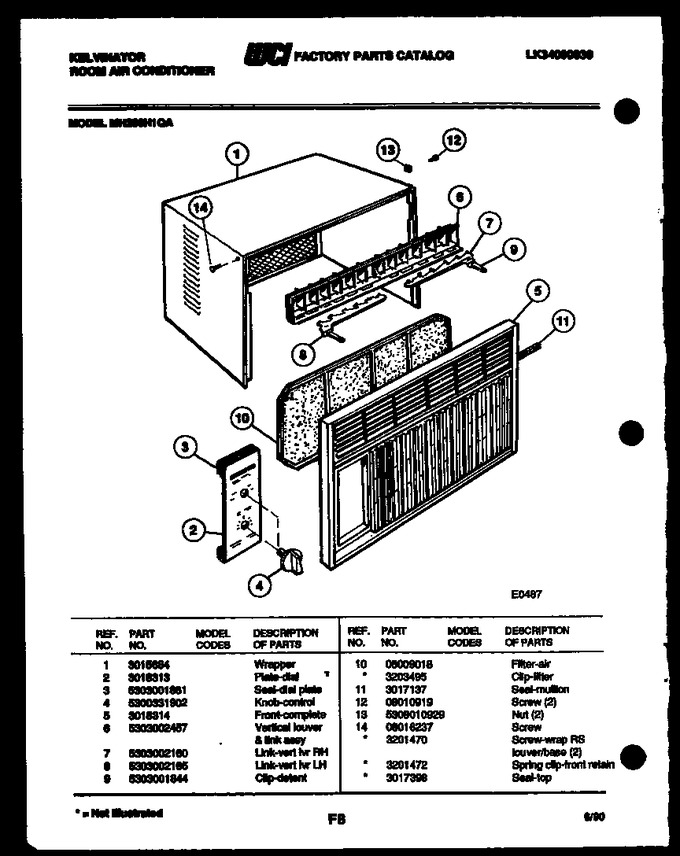

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015684 | Wrapper |
|
- | |||||
| 2 | 3018313 | Plate-dial |
|
- | |||||
| 3 | 5303001861 | Seal-dial Plate |
|
- | |||||
| 4 | 5300331902 | Knob Control |
|
- | |||||
| 5 | 3018314 | Front-complete |
|
- | |||||
| 6 | 5303002457 | Vertical Louver & Link Assy |
|
- | |||||
| 7 | 5303002160 | Link-vert Lvr Rh |
|
- | |||||
| 8 | 5303002165 | Link-vert Lvr Lh |
|
- | |||||
| 9 | 5303001844 | Clip-detent |
|
- | |||||
| 10 | 08009018 | Filter-air |
|
- | |||||
| 11 | 3017137 | Seal-mullion |
|
- | |||||
| 12 | 08010919 | Screw (2) |
|
- | |||||
| 13 | 5308010929 | Nut (2) |
|
- | |||||
| 14 | 08016237 | Screw |
|
- | |||||
| *17255 | 3201470 | Screw-wrap Rs Louver/base (2) |
|
- | |||||
| *17256 | 3201472 | Spring Clip-front Retain |
|
- | |||||
| *17256 | 3017398 | Seal-top |
|
- | |||||
| 10A | 3203495 | Clip-filter (non-illustrated) |
|
- |
