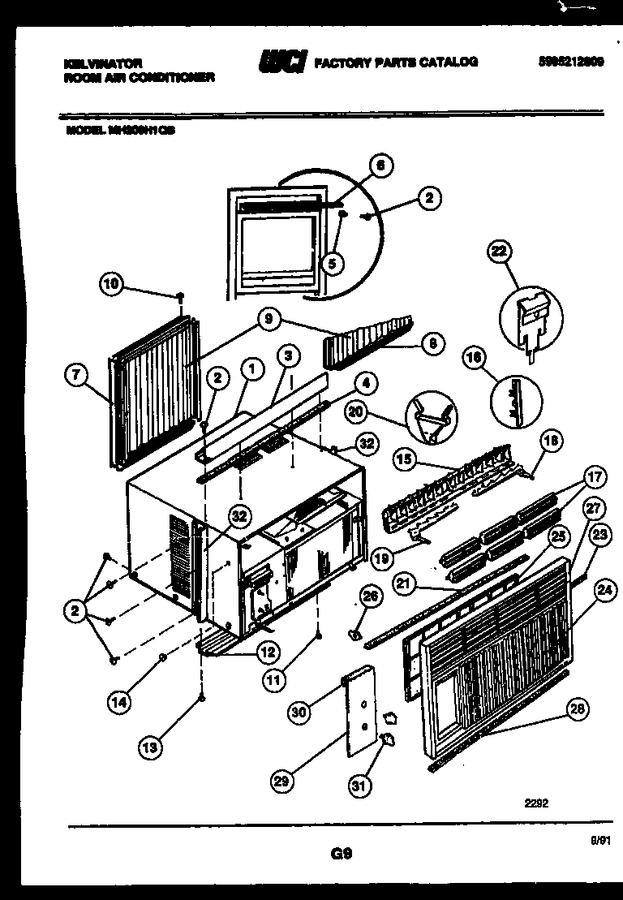

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270060 | Wrapper |
|
- | |||||
| 2 | 3015312 | Screw |
|
- | |||||
| 3 | 5308012966 | Switch |
|
- | |||||
| 3 | 5303270064 | Rail Top |
|
- | |||||
| 4 | 08016226 | Seal |
|
- | |||||
| 5 | 5303211056 | Bracket |
|
- | |||||
| 6 | 3002603 | Seal-window |
|
- | |||||
| 7 | 5303270061 | Frame Ext-lh |
|
- | |||||
| 8 | 5303270062 | Frame Ext-rh |
|
- | |||||
| 9 | 5303270075 | Closure-accordian |
|
- | |||||
| 10 | 5308002974 | Screw |
|
- | |||||
| 11 | 08016080 | Screw-leveling |
|
- | |||||
| 12 | 5303270072 | Rail Btm |
|
- | |||||
| 13 | 3001806 | Screw |
|
- | |||||
| 14 | 5303271346 | Screw-front |
|
- | |||||
| 15 | 5303002457 | Louver & Link |
|
- | |||||
| 16 | 5303017319 | Retainer-louver |
|
- | |||||
| 17 | 3017318 | Louver |
|
- | |||||
| 18 | 5303002160 | Link-rh |
|
- | |||||
| 19 | 08017146 | Link-lh |
|
- | |||||
| 20 | 5303001844 | Clip-link |
|
- | |||||
| 21 | 3017398 | Seal-top |
|
- | |||||
| 22 | 3201472 | Clip |
|
- | |||||
| 23 | 3017137 | Seal-mullion |
|
- | |||||
| 24 | 3018314 | Front-complete |
|
- | |||||
| 25 | 08009018 | Filter |
|
- | |||||
| 26 | 3203495 | Clip-filter, (2) |
|
- | |||||
| 27 | 5303280313 | Seal-side |
|
- | |||||
| 28 | 5303280312 | Seal Btm |
|
- | |||||
| 29 | 3018313 | Dial Plate |
|
- | |||||
| 30 | 5303001861 | Seal |
|
- | |||||
| 31 | 5300331902 | Knob (2) |
|
- | |||||
| 32 | 5303270073 | Retainer |
|
- | |||||
| 2A | 08010928 | Nut Front Lock (non-illustrated) |
|
- |
