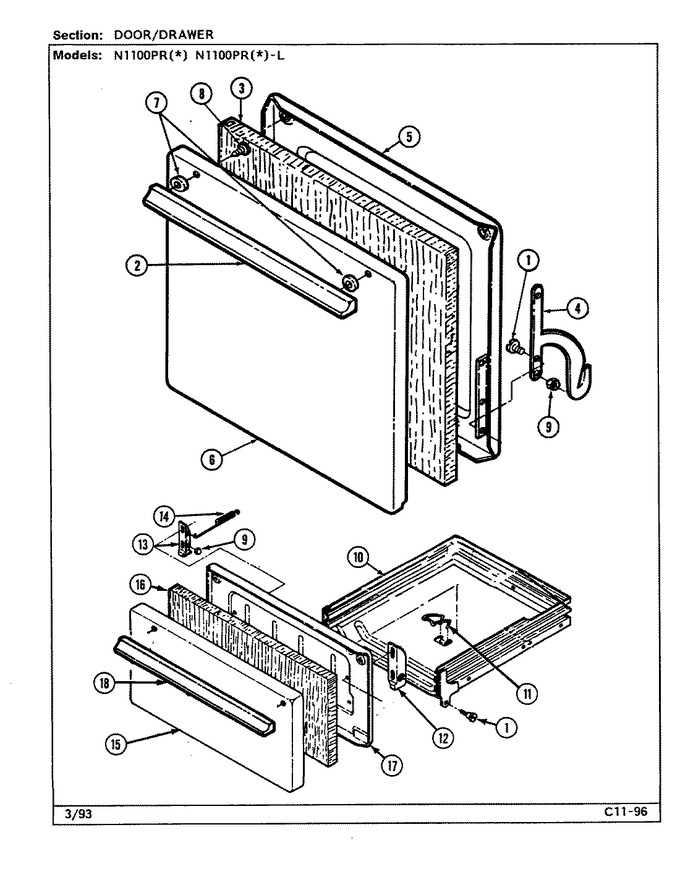

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Door/drawer
03 - Gas Controls
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7118P009-60 | Bolt, Shoulder | 1 |
|
- | ||||
| 2 | 7701P029-60 | Handle, Door (chr) | 1 |
|
- | ||||
| 3 | 7002P102-60 | Insulation, Oven Door | 1 |
|
- | ||||
| 4 | 3418F053-34 | Hinge, Oven Door | 1 |
|
- | ||||
| 5 | 2402W102-19 | Lining, Door | 1 |
|
- | ||||
| 6 | 2401W059-71 | Panel, Oven Door (wht) | 1 |
|
- | ||||
| 6 | 2401W059-74 | Panel, Oven Door (alm) | 1 |
|
- | ||||
| 7 | W10080180 | Nut (Replaces: 7103P034-60) | 1 |
|
$ 12.13 | ||||
| 7 | 8010P020-60 | Spacer, Door Handle | 1 |
|
- | ||||
| 8 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) | 1 |
|
Immediately | $ 7.69 | |||
| 8 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 1 |
|
$ 6.77 | ||||
| 9 | W10080180 | Nut Lock (Replaces: 7103P072-60) | 1 |
|
$ 12.13 | ||||
| 10 | 3407W005-19 | Drawer, Broiler | 1 |
|
- | ||||
| 11 | 7809P004-60 | Stop, Broiler Drawer | 1 |
|
- | ||||
| 12 | 3418F035-80 | Hinge, Broiler Drawer (rt) | 1 |
|
- | ||||
| 13 | 3418F034-80 | Hinge, Broiler Drawer (lt) | 1 |
|
- | ||||
| 14 | 7803P068-60 | Spring, Broiler Drawer | 1 |
|
- | ||||
| 15 | 2403W019-74 | Panel, Drawer (alm) | 1 |
|
- | ||||
| 15 | 2403W019-71 | Panel, Drawer (wht) | 1 |
|
- | ||||
| 16 | 7002P067-60 | Insulation, Broiler Door | 1 |
|
- | ||||
| 17 | 2404F022-19 | Lining Door Broiler | 1 |
|
- | ||||
| 18 | 7701P012-60 | Handle, Drawer (chr) | 1 |
|
- | ||||
| 18 | 74002481 | Screw, Handle (Replaces: 7101P283-60) | 1 |
|
$ 5.82 |
