Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 7101P287-60 Screw, Metal Grounding Special Order $ 12.03

1 WP74010761 Element, Bake   (Replaces: 7406P041-60) Special Order $ 108.93

2 7406P044-60 Element, Broil Appelez-nous -
3 7002P091-60 Insulation, Oven Back Appelez-nous -
4 7002P119-60 Insulation, Wrap Appelez-nous -
5 2205F013-19 Bottom, Oven Appelez-nous -
6 4396923 Pan, Broiler   (Replaces: 3401F010-23) In-Stock Immediately $ 52.04

7 3414F084-45 Tube, Vent Appelez-nous -
8 7801P019-60 Rack, Oven Appelez-nous -
9 3807F375-45 Support Appelez-nous -
10 3807F285-51 Support, Insulation Appelez-nous -
11 3413F007-19 Insert Pan Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

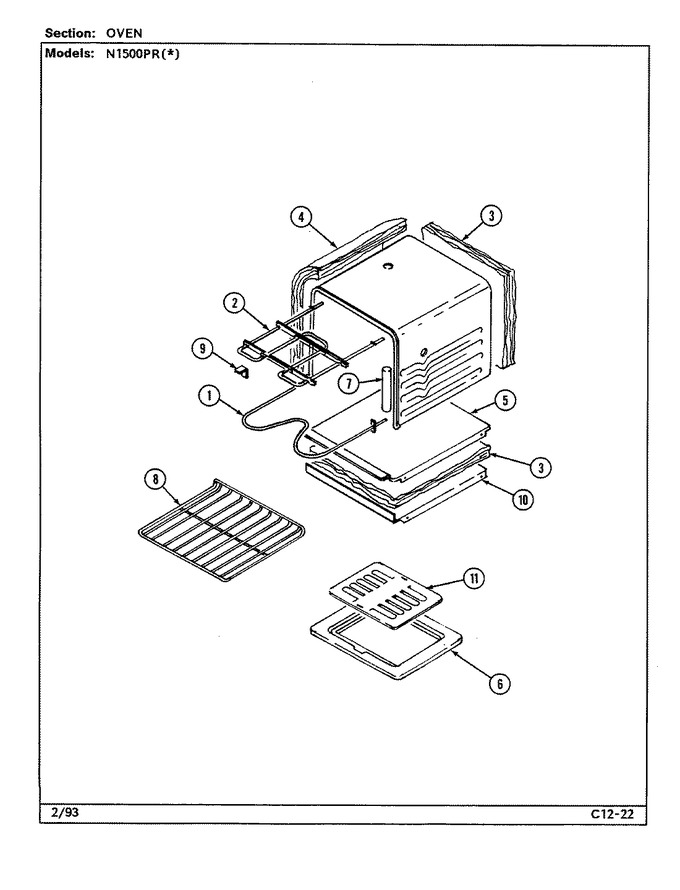

Diagram for N1500PRW
