02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

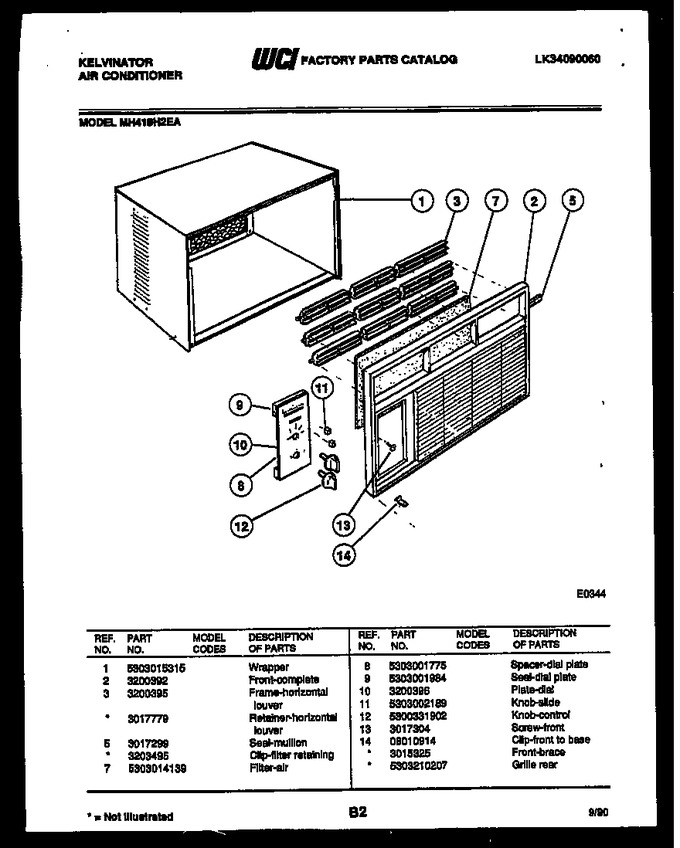

| 1 | 5303015315 | Wrapper |
|
- | |||||
| 2 | 3200392 | Front-complete |
|
- | |||||
| 3 | 3200395 | Frame-horizontal Louver |
|
- | |||||
| 5 | 3017299 | Seal Mullion |
|
- | |||||
| 7 | 5303014139 | Filter-air |
|
- | |||||
| 8 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| 9 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 10 | 3200396 | Plate-dial |
|
- | |||||
| 11 | 5303002189 | Knob-slide |
|
- | |||||
| 12 | 5300331902 | Knob Control |
|
- | |||||
| 13 | 3017304 | Screw-front |
|
- | |||||
| 14 | 08010914 | Clip-front To Base |
|
- | |||||
| *17621 | 3015325 | Front Brace |
|
- | |||||
| *17621 | 5303210207 | Grille-rear |
|
- | |||||
| 3A | 3017779 | Retainer-horizontal Louver (non-illustrated) |
|
- | |||||
| 5A | 3203495 | Clip-filter Retaining (non-illustrated) |
|
- |
