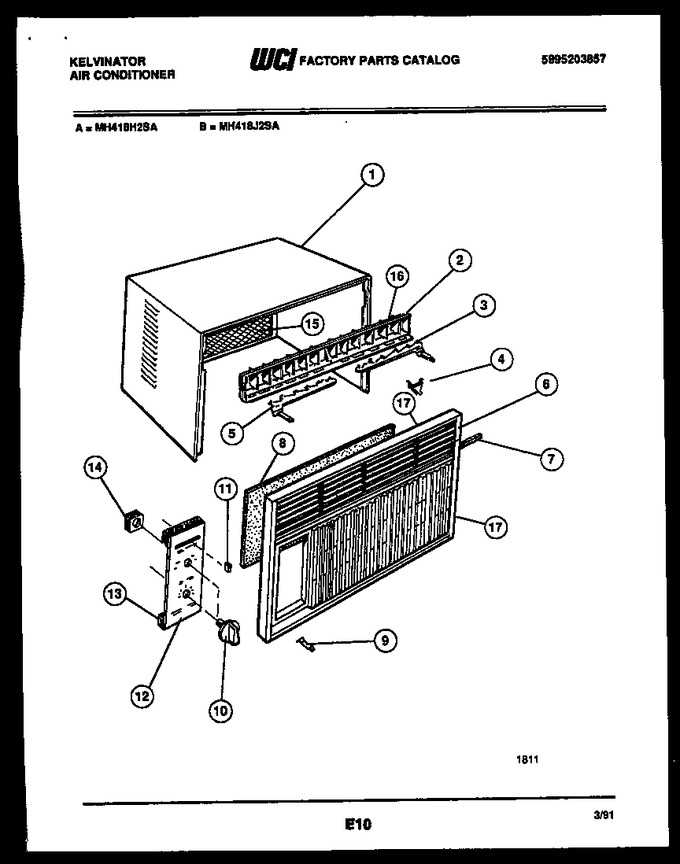

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015315 | Wrapper |
|
- | |||||
| 2 | 5303002459 | Vert-louver Link Assy |
|
- | |||||
| 3 | 5303002162 | Link-vert Louver Rh |
|
- | |||||
| 4 | 5303001844 | Spring-clip Link Dent |
|
- | |||||
| 5 | 5303002163 | Link-vert Louver Lh |
|
- | |||||
| 7 | 3017299 | Seal Mullion |
|
- | |||||
| 8 | 3017336 | Filter (molded) |
|
- | |||||
| 9 | 3015325 | Front Brace |
|
- | |||||
| 10 | 5300331902 | Knob-control (2) |
|
- | |||||
| 11 | 5303002189 | Knob-slide |
|
- | |||||
| 12 | 3018278 | Plate-dial |
|
- | |||||
| 13 | 5303001984 | Seal-dial |
|
- | |||||
| 14 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| 15 | 5303016831 | Grille Rear |
|
- | |||||
| 16 | 3002435 | Frame Louvers |
|
- | |||||
| 17 | 5303271831 | Seal Top & Side |
|
- | |||||
| *18832 | 3017363 | Rail - Filter, Lh |
|
- | |||||
| *18832 | 3017365 | Rail Filter Rh |
|
- | |||||
| 6A | 5303210015 | Front-complete (non-illustrated) |
|
- |
