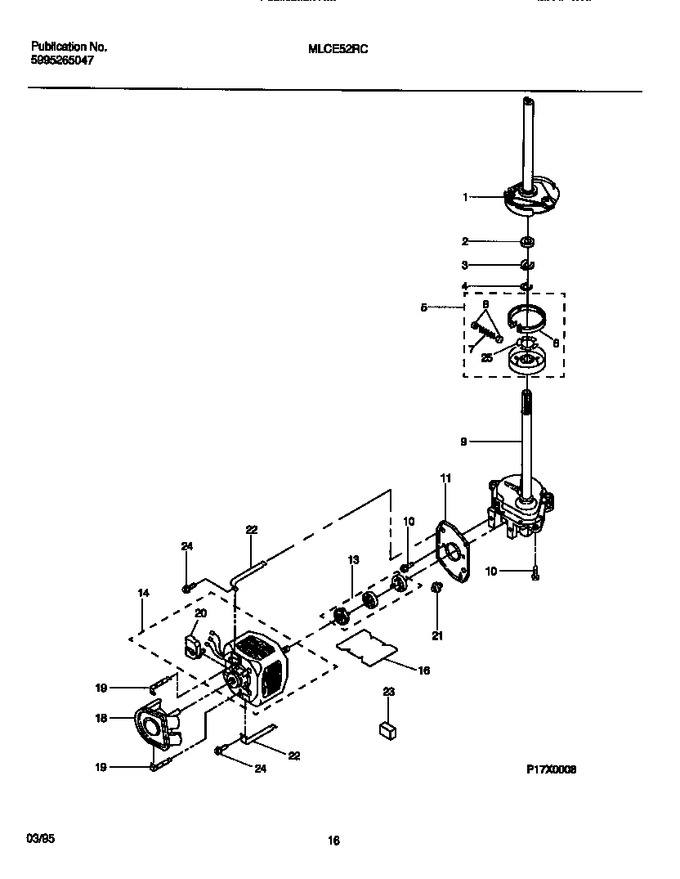

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303308180		Brake And Drive Tube-complete (refer To Page 25 For Furt		Appelez-nous	-
2	5303308181		Washer-spin Tube Thrust		Appelez-nous	-
3	5303308182		Ring-spin Tube Support		Appelez-nous	-
4	5303308183		Ring-retainer		Appelez-nous	-
5	5303308632		Clutch (complete)		Appelez-nous	-
6	5303308185		Band And Lining (includes Pos. 7 & 8)		Appelez-nous	-
7	5303308186		Spring-clutch		Appelez-nous	-
8	5303308187		Cap-clutch Spring (2)		Appelez-nous	-
9	5303308188		Transmission-complete		Appelez-nous	-
10	5303308189		Screw-transmission To Tub Support (3)		Appelez-nous	-
11	5303308190		Plate-motor Mount To Transmission		Appelez-nous	-
13	5303308633		Coupling-motor & Isolating		Appelez-nous	-
14	5303308634		Motor-main Drive		Appelez-nous	-
16	5303308635		Plate-motor		Appelez-nous	-
18	5303308194		Pump-complete		Appelez-nous	-
19	5303308195		Retainer-pump		Appelez-nous	-
20	5303308196		Switch-main Motor Drive		Appelez-nous	-
21	5303308197		Grommet-motor (4)		Appelez-nous	-
22	5303308198		Retainer-motor (2)		Appelez-nous	-
23	5303308199		Foam		Appelez-nous	-
24	5303308200		Screw-10-16 X 5/8 (2)		Appelez-nous	-
25	5303308201		Clip-anti Rattle		Appelez-nous	-
