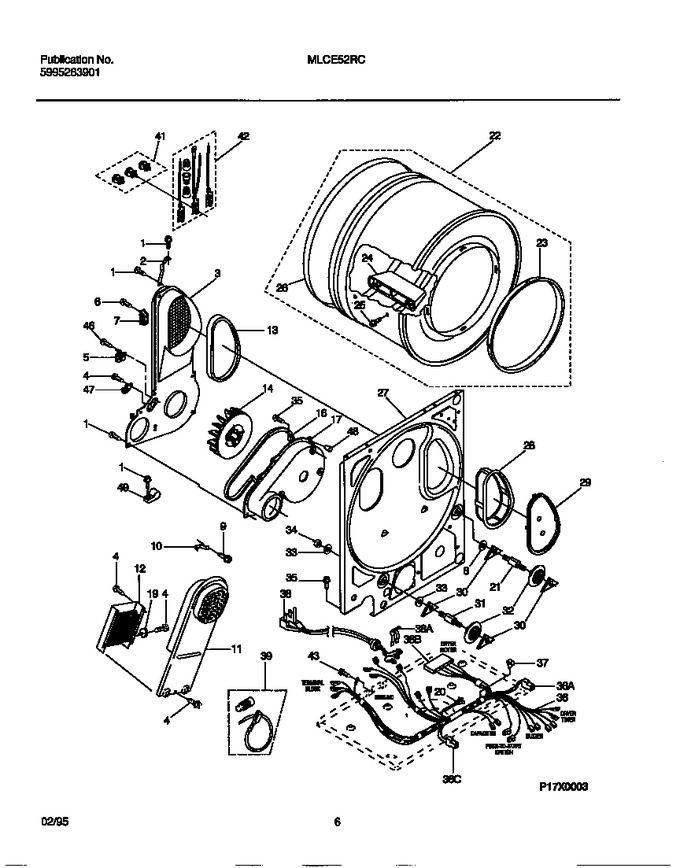

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	636T091P05		Screw-10-16 X 1/2		Appelez-nous	-
2	5303308058		Clip-air Duct To Bulkhead		Appelez-nous	-
3	5303308060		Air Duct & Bracket		Appelez-nous	-
4	5303308063		Screw-8a X 3/8		Appelez-nous	-
5	5303308066		Thermostat-internal Bias				$ 148.89
6	5303308069		Screw-terminal Block To Bracket (2)		Appelez-nous	-
7	5303308074		Block-terminal		Appelez-nous	-
8	5303308075		Washer		Appelez-nous	-
9	5303308078		Screw-8-18 X 3/4		Appelez-nous	-
10	5303308080		Clip-heater Box To Bulkhead		Appelez-nous	-
11	5303308082		Heater Box		Appelez-nous	-
12	WP279843		Element-heater   (Replaces: 5303308086)			Immediately	$ 141.62
13	5303308087		Seal-air Duct To Bulkhead		Appelez-nous	-
14	5303308090		Wheel-blower		Appelez-nous	-
16	5303308091		Seal-fan Scroll		Appelez-nous	-
17	5303308093		Fan Scroll		Appelez-nous	-
19	5303308095		Thermostat-heater Box		Appelez-nous	-
20	5303308100		Tie-cable		Appelez-nous	-
21	5303308056		Shaft-drum Roller Rh		Appelez-nous	-
22	5303308059		Drum-dryer		Appelez-nous	-
23	5303308061		Ring-bearing		Appelez-nous	-
24	5303308062		Baffle-drum (3)		Appelez-nous	-
25	5303308064		Screw-baffle Mounting (6)		Appelez-nous	-
26	5303308067		Seal-drum Rear		Appelez-nous	-
27	5303308070		Bulkhead		Appelez-nous	-
28	5303308071		Lint Screen		Appelez-nous	-
29	5303308073		Cover-lint Screen Outlet		Appelez-nous	-
30	5303308076		Tri-ring (4)		Appelez-nous	-
31	5303308079		Shaft-drum Roller Lh		Appelez-nous	-
32	5303308081		Roller-support (2)		Appelez-nous	-
33	5303308083		Washer-support (4)		Appelez-nous	-
34	5303308085		Nut (2)		Appelez-nous	-
35	5303308052		Screw-10-16 X 3/8		Appelez-nous	-
36	5303308092		Receptacle-terminal (2-way)		Appelez-nous	-
36	5303308098		Receptacle-multi-terminal		Appelez-nous	-
36	5303308057		Receptacle-terminal		Appelez-nous	-
36	5303308088		Harness-main (dryer) (includes No. 36a, 36b & 36c)		Appelez-nous	-
37	5303308065		Clip-wiring Harness (3)		Appelez-nous	-
38	5303308072		Clip-strain Relief		Appelez-nous	-
38	5303308068		Cord-power (3 Prong)		Appelez-nous	-
39	5303308077		Wire Kit (for Heater Element Wiring Harness Repair)		Appelez-nous	-
41	5303308084		Screw Kit		Appelez-nous	-
42	5303308089		Terminal-tinned And Brass (3) (includes Pos. 41)		Appelez-nous	-
43	5303308055		Screw-ground (2)		Appelez-nous	-
46	5303308094		Screw-8-18 X 1/2 (2)		Appelez-nous	-
47	WP3399849		Fuse-thermal   (Replaces: 5303308096)			Immediately	$ 32.42
48	5303308097		Cap-screw		Appelez-nous	-
49	5303308099		Clip-strain Relief		Appelez-nous	-
