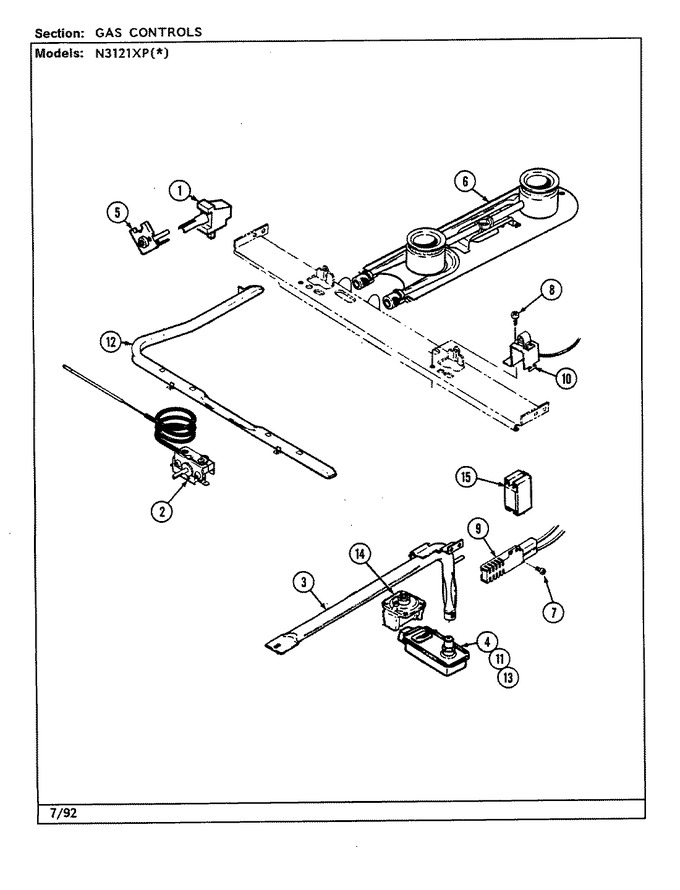

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7502P174-60 | Valve, Top Burner | 01 |
|
- | ||||
| 1 | 7101P044-60 | Screw, Valve | 01 |
|
- | ||||
| 2 | 3604F177-51 | Shield, Thermostat | 01 |
|
- | ||||
| 2 | 7404P084-60 | Thermostat | 01 |
|
- | ||||
| 2 | 7101P280-60 | Screw W/washer (blk) | 01 |
|
- | ||||
| 3 | 3403D023-45 | Burner, Oven | 01 |
|
- | ||||
| 4 | 7507M125-60 | Union Pipe Fitting (female) | 01 |
|
- | ||||
| 4 | 4005F334-51 | Cover, Valve | 01 |
|
- | ||||
| 4 | 7501P099-60 | Valve, Oven | 01 |
|
- | ||||
| 5 | 7403P284-60 | Switch, Burner | 01 |
|
$ 55.80 | ||||
| 6 | 3412A004-19 | Burner, Top | 01 |
|
- | ||||
| 7 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 01 |
|
$ 4.29 | ||||
| 8 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 9 | 12400035 | Igniter, Oven (Replaces: 7432P067-60) | 01 |
|
Immediately | $ 60.44 | |||
| 10 | 7432P008-60 | Igniter, Top (lt) | 01 |
|
- | ||||
| 10 | 7432P015-60 | Igniter, Top Burner | 01 |
|
$ 53.77 | ||||
| 11 | 3414F104-44 | Tubing - Regulator & Pipe | 01 |
|
- | ||||
| 12 | 7513P105-60 | Pipe, Manifold | 01 |
|
- | ||||
| 13 | 1555251 | Nut, Loxit (3/8``) | 01 |
|
- | ||||
| 14 | WP74006429 | Regulator, Pressure W/fitting (Replaces: 7510P050-60) | 01 |
|
$ 282.77 | ||||
| 15 | 3807F432-45 | Support, Spark Module | 01 |
|
- | ||||
| 15 | 5195D078-60 | Harness, Burner Box | 01 |
|
- | ||||
| 15 | 5125A312-60 | Harness, Loose/burner Box | 01 |
|
- | ||||
| 15 | 7431P006-60 | Module, Spark | 01 |
|
- |
