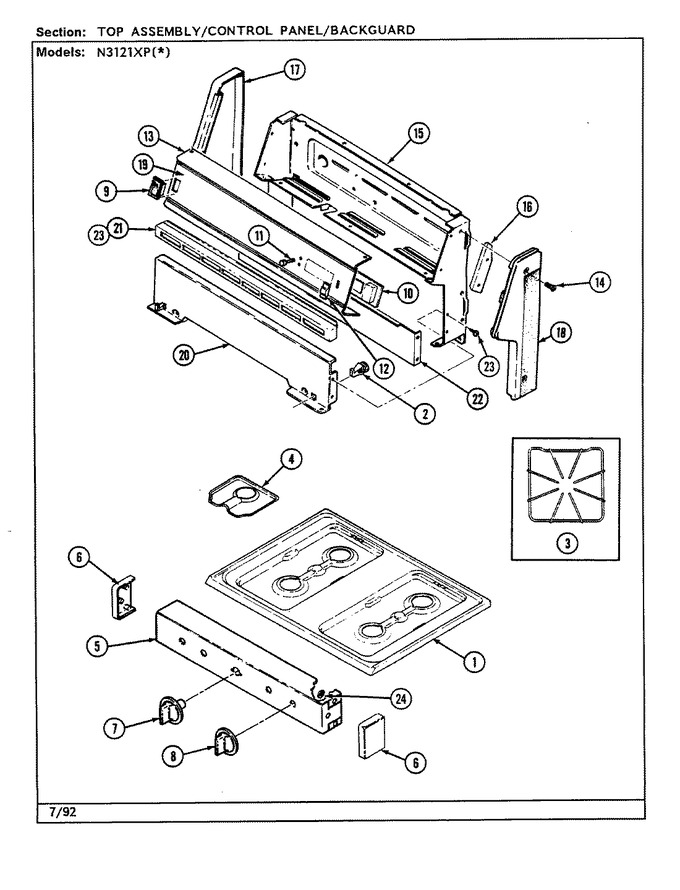

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303288566 | Top, Main (wht) (Replaces: 2001F098-81) | 01 |
|
$ 2.12 | ||||
| 2 | 8010P069-60 | Spacer, Hinge (main Top) | 01 |
|
$ 8.57 | ||||
| 3 | 2003W026-00 | Grate (blk) | 01 |
|
- | ||||
| 4 | 1430283 | Drip Bowl Kit (accessory) (Replaces: 5401A433-60) | 01 |
|
$ 95.86 | ||||
| 5 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 5 | 2616F095-09 | Panel, Manifold (blk) | 01 |
|
- | ||||
| 5 | 7101P311-60 | Screw----na | 01 |
|
- | ||||
| 6 | 7713P018-60 | End Cap, Panel (blk) | 01 |
|
- | ||||
| 7 | 7731P095-60 | Knob, Thermostat | 01 |
|
- | ||||
| 8 | WP7711P135-60 | Knob, Valve (Replaces: 7733P057-60) | 01 |
|
$ 25.06 | ||||
| 9 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P247-60) | 01 |
|
$ 91.35 | ||||
| 10 | 7602P104-60 | Clock | 01 |
|
- | ||||
| 11 | 7711P468-60 | Button, Set (blk) | 01 |
|
- | ||||
| 12 | 7711P469-60 | Button, Slide (blk) | 01 |
|
- | ||||
| 13 | 3801F296-51 | Bracket, Backguard | 01 |
|
- | ||||
| 13 | 2601W358-09 | Backguard (black) | 01 |
|
- | ||||
| 13 | WPY706189 | Screw (Replaces: 7118P019-60) | 01 |
|
Immediately | $ 6.47 | |||
| 14 | 7101P032-60 | Screw | 01 |
|
- | ||||
| 14 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 15 | 4001F088-51 | Housing, Backguard | 01 |
|
- | ||||
| 16 | 3807F436-45 | Support, Control Pnl (lt) | 01 |
|
- | ||||
| 16 | 3807F435-45 | Support, Control Pnl (rt) | 01 |
|
- | ||||
| 17 | 7726P067-60 | End Cap (lt-blk) | 01 |
|
- | ||||
| 18 | 7726P068-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 18 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 19 | 7703P314-60 | Trim, Inlay | 01 |
|
- | ||||
| 20 | 2612F037-81 | Backsplash (wht) | 01 |
|
- | ||||
| 21 | 3608F043-09 | Trim, Vent | 01 |
|
- | ||||
| 22 | 3604F170-09 | Shield, Flue | 01 |
|
- | ||||
| 23 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 24 | 5180D138-60 | Harness, Control Panel | 01 |
|
- | ||||
| 24 | 7112P092-60 | Clip, Spring Grip | 01 |
|
- | ||||
| 24 | 5185D250-60 | Harness, Supply | 01 |
|
- | ||||
| 25 | 8113P011-60 | Manual, Use & Care | 01 |
|
- |
