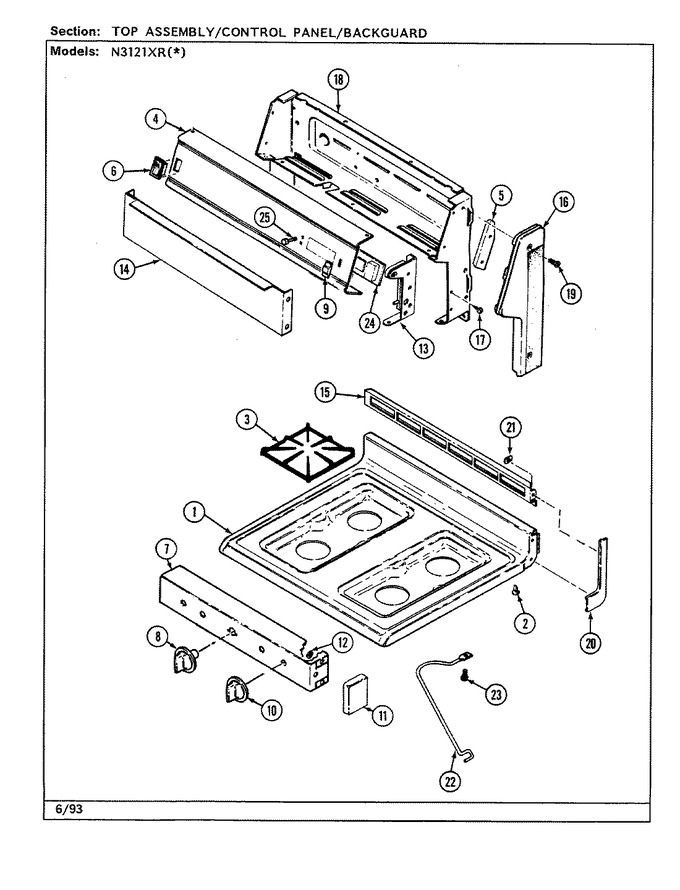

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001W081-81 | Top, Main (wht) | 01 |
|
- | ||||
| 2 | 8016P013-60 | Glide | 01 |
|
- | ||||
| 3 | 2003W026-00 | Grate (blk) | 01 |
|
- | ||||
| 4 | 4851S044-59 | Panel, Control | 01 |
|
- | ||||
| 5 | 3807F435-45 | Support, Control Pnl (rt) | 01 |
|
- | ||||
| 5 | 3807F436-45 | Support, Control Pnl (lt) | 01 |
|
- | ||||
| 6 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P247-60) | 01 |
|
$ 91.35 | ||||
| 7 | 2616F095-09 | Panel, Manifold (blk) | 01 |
|
- | ||||
| 7 | 7101P311-60 | Screw----na | 01 |
|
- | ||||
| 8 | WP74002419 | Knob, Thermostat (blk) (Replaces: 7731P079-60) | 01 |
|
$ 18.54 | ||||
| 9 | 7711P469-60 | Button, Slide (blk) | 01 |
|
- | ||||
| 10 | WP7711P135-60 | Knob, Valve (blk) (Replaces: 7733P062-60) | 01 |
|
$ 25.06 | ||||
| 11 | 7713P018-60 | End Cap, Panel (blk) | 01 |
|
- | ||||
| 12 | 7112P092-60 | Clip, Spring Grip | 01 |
|
- | ||||
| 13 | 3418A087-34 | Hinge, Main Top (rt) | 01 |
|
- | ||||
| 13 | 3418A088-34 | Hinge, Main Top (lt) | 01 |
|
- | ||||
| 14 | 3604F188-09 | Shield, Flue | 01 |
|
- | ||||
| 15 | 3608F042-09 | Trim, Vent (blk) | 01 |
|
- | ||||
| 16 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 16 | 7726P049-60 | Trim, Backguard (lt) | 01 |
|
- | ||||
| 16 | 7726P045-60 | Trim, Backguard (rt) | 01 |
|
- | ||||
| 17 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 18 | 4001F088-51 | Housing, Backguard | 01 |
|
- | ||||
| 19 | 7101P032-60 | Screw | 01 |
|
- | ||||
| 20 | 7746P031-60 | End Cap (lt-blk) | 01 |
|
$ 26.25 | ||||
| 20 | 7746P030-60 | End Cap (rt-blk) | 01 |
|
$ 26.16 | ||||
| 21 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| 22 | 7809P014-60 | Support, Prop | 01 |
|
- | ||||
| 23 | WPW10068250 | Screw 3/8`` (Replaces: 7101P141-60) | 01 |
|
$ 3.66 | ||||
| 24 | 7602P104-60 | Clock | 01 |
|
- | ||||
| 25 | 5180D138-60 | Harness, Control Panel | 01 |
|
- | ||||
| 25 | 5185D250-60 | Harness, Supply | 01 |
|
- | ||||
| 25 | 7711P468-60 | Button, Set (blk) | 01 |
|
- | ||||
| 26 | 8113P011-60 | Manual, Use & Care | 01 |
|
- |
