View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body/oven
02 - Control Panel
03 - Control Panel
04 - Door/drawer
05 - Gas Controls
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:

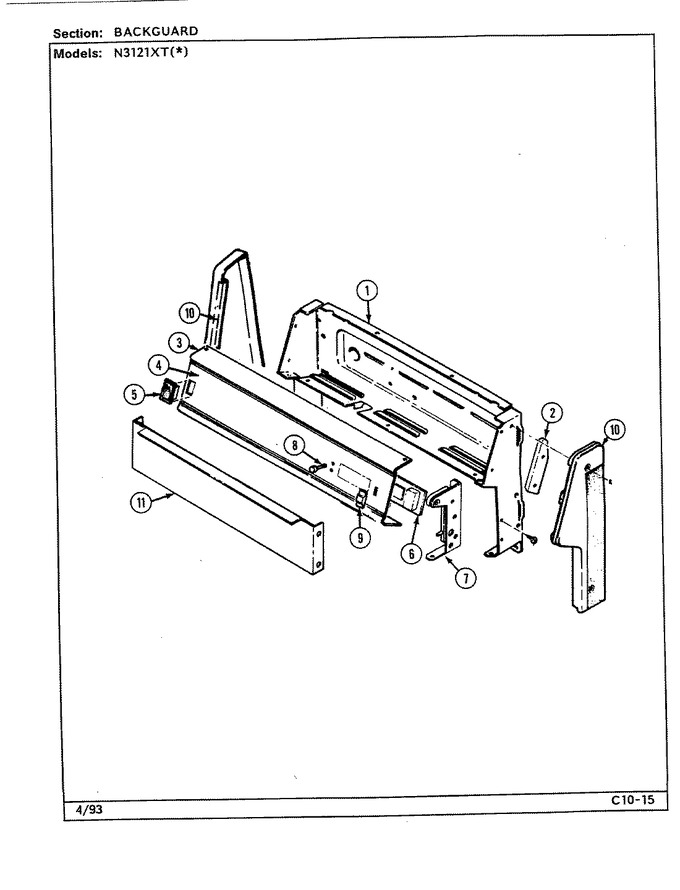

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001W081-84 | Top, Main (alm) |
|
- | |||||
| 2 | 7809P014-60 | Support, Prop |
|
- | |||||
| 3 | WPW10068250 | Screw 3/8`` (Replaces: 7101P141-60) |
|
$ 3.66 | |||||
| 4 | 3608F042-09 | Trim, Vent (blk) |
|
- | |||||
| 4 | 7101P208-60 | Screw (10abx1/4p Tr Zn) |
|
$ 11.92 | |||||
| 5 | 7746P030-60 | End Cap (rt-blk) |
|
$ 26.16 | |||||
| 5 | 7746P031-60 | End Cap (lt-blk) |
|
$ 26.25 | |||||
| 6 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) |
|
$ 7.68 | |||||
| 7 | 8016P013-60 | Glide |
|
- | |||||
| 8 | 8114P348-60 | Cover, Hinge Support |
|
- | |||||
| 8 | W11233072 | Screw, Housing (Replaces: 7118P015-60) |
|
Immediately | $ 12.62 | ||||
| 8 | 3418A088-34 | Hinge, Main Top (lt) |
|
- | |||||
| 8 | 3418A087-34 | Hinge, Main Top (rt) |
|
- | |||||
| 9 | 2003W026-00 | Grate (blk) |
|
- | |||||
| 10 | 7101P311-60 | Screw----na |
|
- | |||||
| 10 | 2616F095-09 | Panel, Manifold (blk) |
|
- | |||||
| 11 | 7713P018-60 | End Cap, Panel (blk) |
|
- | |||||
| 12 | 7112P092-60 | Clip, Spring Grip |
|
- | |||||
| 13 | WP74002419 | Knob, Thermostat (blk) (Replaces: 7731P079-60) |
|
$ 18.54 | |||||
| 14 | WP7711P135-60 | Knob, Valve (blk) (Replaces: 7733P062-60) |
|
$ 25.06 | |||||
| 15 | 8113P011-60 | Manual, Use & Care |
|
- | |||||
| 15 | 5401A452-60 | Drip Bowl Kit (accessory) |
|
- |
