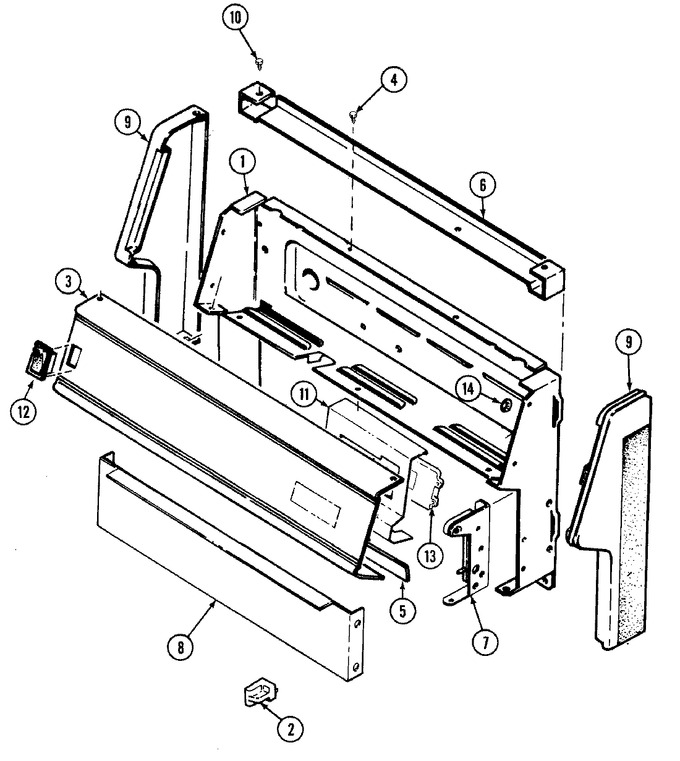

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F448-45 | Cover, Wire | 15 |
|
- | ||||
| 1 | 4001F091-51 | Housing, Control Panel | 15 |
|
- | ||||
| 2 | 8010P083-60 | Spacer | 15 |
|
- | ||||
| 2 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 15 |
|
$ 6.98 | ||||
| 3 | 7101P348-60 | Screw (wht) | 15 |
|
- | ||||
| 3 | 7703P695-60 | Panel, Control (wht) | 15 |
|
- | ||||
| 4 | 8036P003-60 | Shield, Sight | 15 |
|
- | ||||
| 4 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 15 |
|
Immediately | $ 12.62 | |||
| 5 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 15 |
|
$ 7.68 | ||||
| 6 | 8036P003-60 | Shield, Sight | 15 |
|
- | ||||
| 7 | 3807F453-51 | Support, Main Top (rt) | 15 |
|
- | ||||
| 7 | 3807F454-51 | Support, Main Top (lt) | 15 |
|
- | ||||
| 8 | 3604F188-09 | Shield, Flue | 15 |
|
- | ||||
| 9 | 7726P086-60 | End Cap (rt-wht) | 15 |
|
- | ||||
| 9 | 7726P085-60 | End Cap (lt-wht) | 15 |
|
- | ||||
| 10 | W10799767 | Clock (wht) (Replaces: 7602P117-60) | 15 |
|
$ 493.35 | ||||
| 11 | 3801F340-45 | Bracket, Clock | 15 |
|
- | ||||
| 12 | 7403P314-60 | Switch, Rocker (wht) | 15 |
|
- | ||||
| 13 | 5180D138-60 | Harness, Control Panel | 15 |
|
- | ||||
| 14 | 8113P043-60 | Manual, Use & Care | 15 |
|
- | ||||
| 15 | 16002081 | Guide, Quick Ref - Norge | 15 |
|
- |
