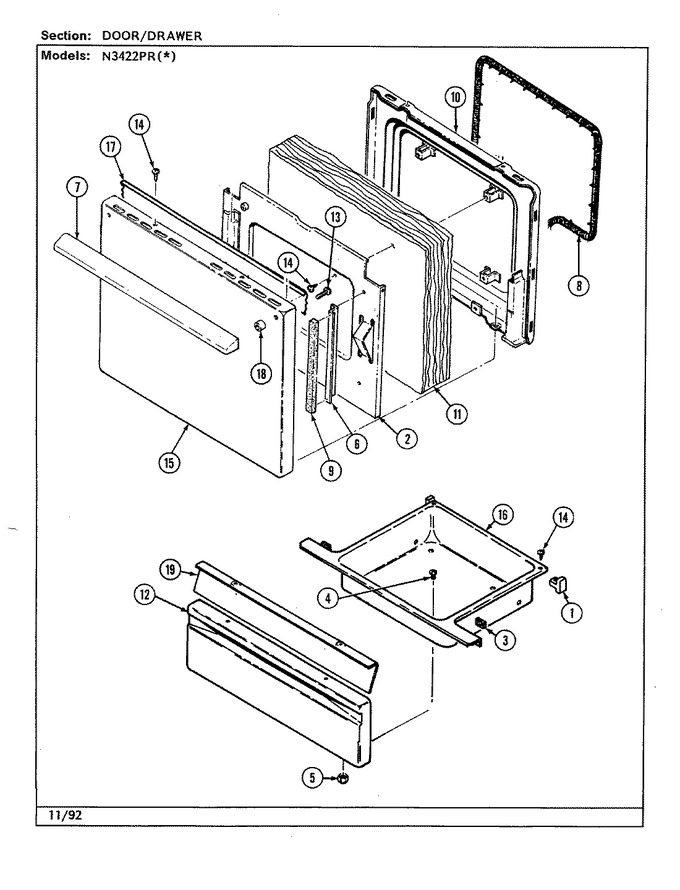

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8004P026-60 | Support, Drawer (rear) | 01 |
|
$ 9.29 | ||||
| 2 | 3601F218-45 | Baffle, Door | 01 |
|
- | ||||
| 3 | WP854334 | Spacer, Rubber (Replaces: 8010P086-60) | 01 |
|
$ 11.95 | ||||
| 4 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 | ||||
| 5 | WPW10131078 | Nut, Lock (Replaces: 7103P085-60) | 01 |
|
$ 4.00 | ||||
| 6 | 3818F052-51 | Channel, Air | 01 |
|
- | ||||
| 7 | 7701P030-60 | Handle, Door (chr) | 01 |
|
- | ||||
| 8 | WPW10162384 | Gasket, Door (Replaces: 7201P046-60) | 01 |
|
Immediately | $ 77.61 | |||
| 9 | 7208P002-60 | Seal | 01 |
|
- | ||||
| 10 | 2402W200-19 | Lining, Door | 01 |
|
- | ||||
| 11 | 4804F012-60 | Insulation Door | 01 |
|
- | ||||
| 12 | 2416F038-64 | Panel, Drawer (alm) | 01 |
|
- | ||||
| 13 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) | 01 |
|
Immediately | $ 7.69 | |||
| 14 | 7101P291-60 | Screw | 01 |
|
- | ||||
| 15 | 2401F098-74 | Panel, Door (alm) | 01 |
|
- | ||||
| 16 | 3405F014-80 | Drawer, Storage | 01 |
|
- | ||||
| 17 | 8270P090-60 | Tape, Foil (3`` Wide) | 01 |
|
- | ||||
| 18 | 8010P084-60 | Spacer, Handle (blk) | 01 |
|
- | ||||
| 18 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 19 | 2404F030-51 | Lining, Drawer Panel | 01 |
|
- |
