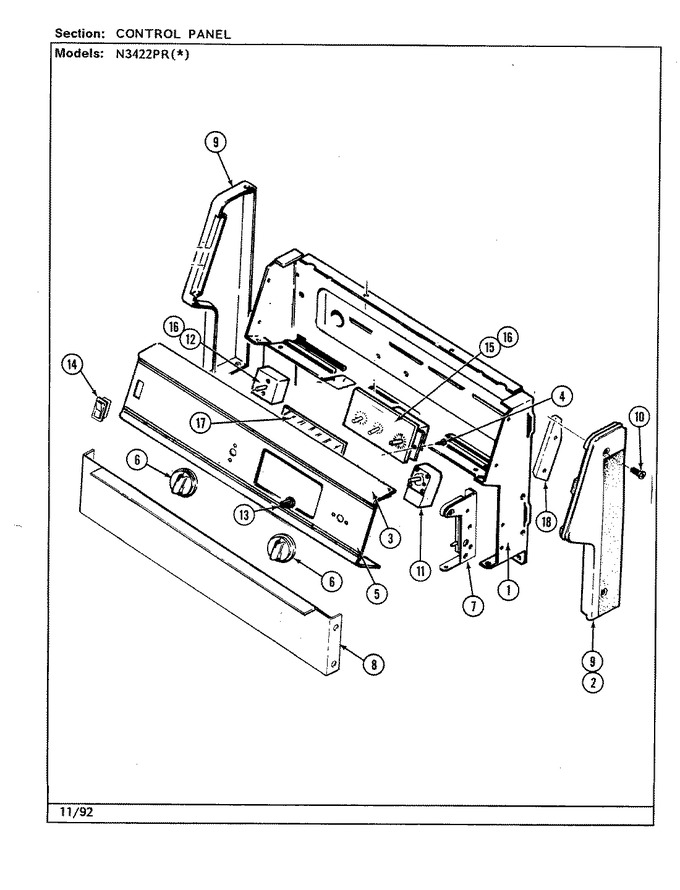

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F088-51 | Housing, Backguard | 01 |
|
- | ||||
| 2 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 3 | 2601F404-09 | Panel, Backguard | 01 |
|
- | ||||
| 4 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 5 | 7703P323-60 | Trim, Control Panel | 01 |
|
- | ||||
| 6 | 7737P032-60 | Knob, Infinite (blk) | 01 |
|
- | ||||
| 7 | 3418A088-34 | Hinge, Main Top (lt) | 01 |
|
- | ||||
| 7 | 3418A087-34 | Hinge, Main Top (rt) | 01 |
|
- | ||||
| 8 | 3604F188-09 | Shield, Flue | 01 |
|
- | ||||
| 9 | 7726P045-60 | Trim, Backguard (rt) | 01 |
|
- | ||||
| 9 | 7726P049-60 | Trim, Backguard (lt) | 01 |
|
- | ||||
| 10 | 7101P032-60 | Screw | 01 |
|
- | ||||
| 11 | 7404P077-60 | Thermostat | 01 |
|
- | ||||
| 12 | 7403P236-60 | Switch, Selector | 01 |
|
- | ||||
| 13 | 7711P466-60 | Knob, Clock | 01 |
|
$ 14.72 | ||||
| 14 | 7403P067-60 | Switch, Rocker (blk) | 01 |
|
$ 91.35 | ||||
| 15 | 7601P170-60 | Clock | 01 |
|
- | ||||
| 16 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 01 |
|
Immediately | $ 6.26 | |||
| 17 | 7902P109-60 | Glass, Clock | 01 |
|
- | ||||
| 17 | 7201P056-60 | Gasket | 01 |
|
- | ||||
| 18 | 5180D155-60 | Harness, Wire Backguard | 01 |
|
- | ||||
| 18 | 5125A363-60 | Wires, Loose | 01 |
|
- | ||||
| 18 | 3807F436-45 | Support, Control Pnl (lt) | 01 |
|
- | ||||
| 18 | 3807F435-45 | Support, Control Pnl (rt) | 01 |
|
- |
