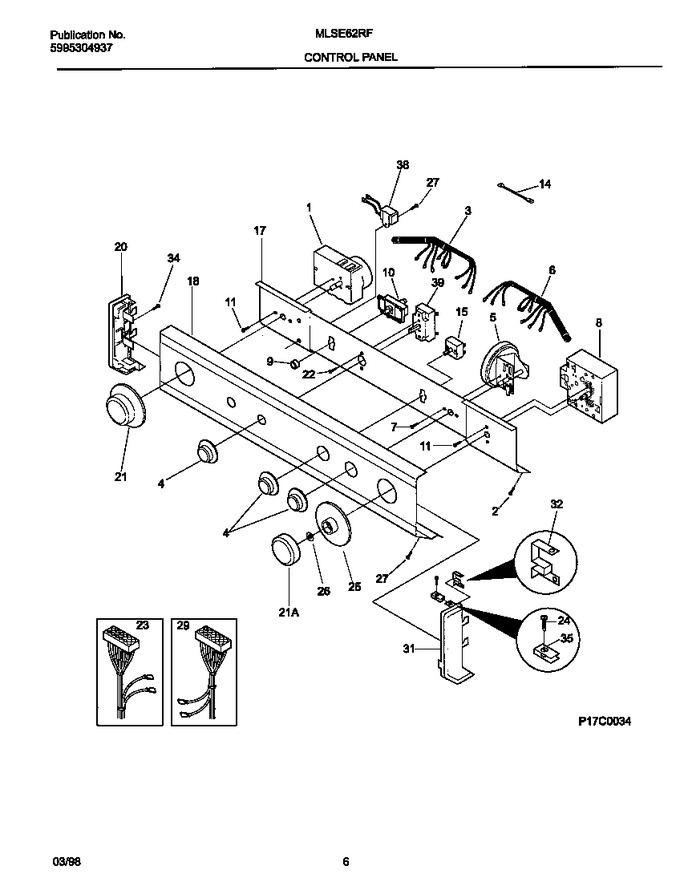

04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303297177		Timer - Dryer				$ 229.64
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131662500		Harness-dryer, Cont		Appelez-nous	-
4	131858004		Knob-rotary   (Replaces: 5303210338)			Immediately	$ 55.29
5	134493500		Switch-pressure   (Replaces: 131337900)				$ 248.69
6	131592700		Harness-washer Cont				$ 154.07
7	08002339		Screw		Appelez-nous	-
8	131437500		Timer-washer				$ 403.39
9	131111500		Knob-start Switch, Black				$ 13.55
10	131628900		Switch-push Start				$ 55.80
11	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
14	3205243		Resistor-power, 4.4k		Appelez-nous	-
15	131621100		Switch-water Temp		Appelez-nous	-
17	131622902		Bracket-control		Appelez-nous	-
18	131693600		Trimplate Fll/g7wjss		Appelez-nous	-
20	131288100		End Cap-lh				$ 59.85
21	5303210341		Knob-washer Timer		Appelez-nous	-
21	131859104		Knob-dryer Timer   (Replaces: 5303210340)			Immediately	$ 60.72
22	3161259		Screw-switch, 6-32 X .19-2a, (2)				$ 6.83
23	131512600		Harness-dryer		Appelez-nous	-
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	5303209901		Dial-timer		Appelez-nous	-
26	3205248		Spacer-timer-shaft				$ 13.02
27	3205253		Screw-end Cap, Pph B, 6-20 X .375		Appelez-nous	-
29	131654700		Harness-washer		Appelez-nous	-
31	131288210		End Cap-rh				$ 54.65
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
38	5303286537		Buzzer				$ 93.61
39	5303270950		Switch-dryer Temp		Appelez-nous	-
*60240	5304464772		Strap   (Replaces: 5303161300)				$ 10.63
