01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

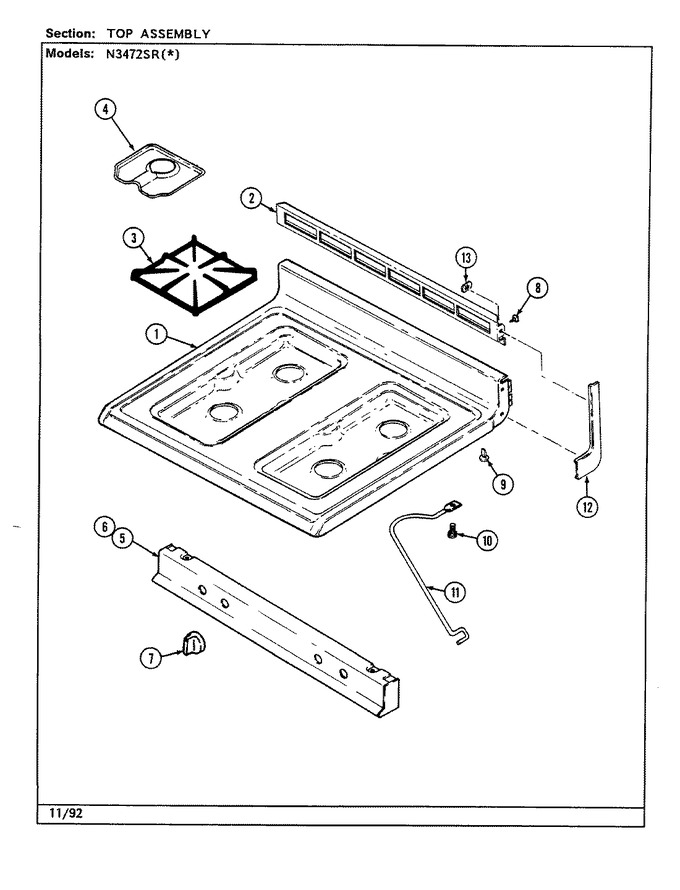

| 1 | 2001W081-81 | Top, Main (wht) | 01 |
|
- | ||||
| 2 | 3608F042-09 | Trim, Vent (blk) | 01 |
|
- | ||||
| 3 | 2003W026-00 | Grate (blk) | 01 |
|
- | ||||
| 4 | 1430283 | Drip Bowl Kit (accessory) (Replaces: 5401A433-60) | 01 |
|
$ 95.86 | ||||
| 5 | 7712P162-60 | Anel, Manifold | 01 |
|
- | ||||
| 6 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 6 | 8114P348-60 | Cover, Hinge Support | 01 |
|
- | ||||
| 7 | WP7711P135-60 | Knob, Valve (Replaces: 7733P057-60) | 01 |
|
$ 25.06 | ||||
| 8 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 01 |
|
$ 11.92 | ||||
| 9 | 8016P013-60 | Glide | 01 |
|
- | ||||
| 10 | 7101P280-60 | Screw W/washer (blk) | 01 |
|
- | ||||
| 11 | 7809P014-60 | Support, Prop | 01 |
|
- | ||||
| 12 | 8270P095-60 | Tape, Double Sided | 01 |
|
- | ||||
| 12 | 7746P030-60 | End Cap (rt-blk) | 01 |
|
$ 26.16 | ||||
| 12 | 7746P031-60 | End Cap (lt-blk) | 01 |
|
$ 26.25 | ||||
| 13 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| 13 | 8113P026-60 | Insert, Instr Sheet (clock) | 01 |
|
- | ||||
| 14 | 8113P017-60 | Manual, Use & Care | 01 |
|
- |
