SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Door/drawer (serial Prefix 15)


05 - Gas Controls


06 - Oven/base


07 - Top Assembly

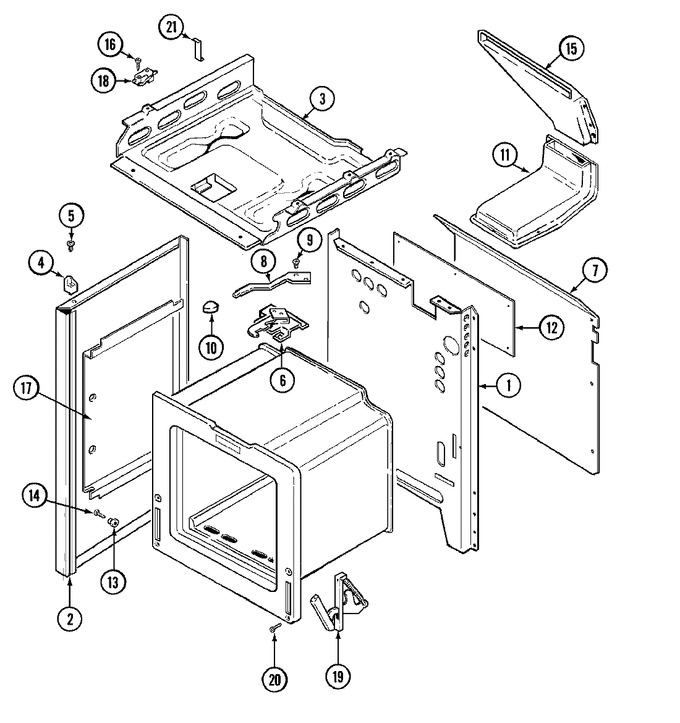

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F199-80		Back, Main	10	Appelez-nous	-
2	74001884		Panel, Side (wht)	10	Appelez-nous	-
3	4011F250-80		Box, Burner	14	Appelez-nous	-
3	4011F210-80		Bottom, Burner Box	10	Appelez-nous	-
4	8010P088-60		Spacer, Main Top (rt)	10	Appelez-nous	-
4	8010P087-60		Spacer, Main Top (lt)	10	Appelez-nous	-
5	WP74004005		Screw   (Replaces: 7118P013-60)	10			$ 6.95
6	74001069		Latch, Door	31	Appelez-nous	-
6	8002P024-60		Latch Assy.	10	Appelez-nous	-
6	74001084		Insulation, Door Latch	31	Appelez-nous	-
6	4804F028-60		Insulation, Latch Assy.	10	Appelez-nous	-
7	4005F331-51		Cover, Main Back Wire	10	Appelez-nous	-
8	8009P029-60		Lever, Latch Assy.	14	Appelez-nous	-
8	8009P015-60		Lever Lock	10	Appelez-nous	-
9	WP4159193		Screw, Lever   (Replaces: 7101P230-60)	10			$ 4.29
10	7701P089-60		Handle, Latch (wht)	10	Appelez-nous	-
10	W10124350		Not Required Part Or See Note	28	Appelez-nous	-
10	7112P003-60		Clip, Latch Handle	10	Appelez-nous	-
11	4006W113-45		Box, Vent	10	Appelez-nous	-
12	3604F165-51		Shield, Flue (lower)	10	Appelez-nous	-
13	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	10			$ 7.07
14	7101P103-60		Screw	10	Appelez-nous	-
15	4022W005-19		Extension, Flue Box	10	Appelez-nous	-
16	7101P330-60		Screw, Switch	14	Appelez-nous	-
16	7101P031-60		Screw	10	Appelez-nous	-
17	3804F103-51		Retainer, Insulation (side)	10	Appelez-nous	-
18	7403P363-60		Switch, Door Latch	10	Appelez-nous	-
18	7403P361-60		Switch, Door Latch	14	Appelez-nous	-
18	3801F267-45		Bracket, Switch	10	Appelez-nous	-
19	7106P033-60		Hinge, Door	10	Appelez-nous	-
20	WP4159193		Screw, Hinge   (Replaces: 7101P017-60)	10			$ 4.29
21	3807F431-45		Support, Main Top	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
