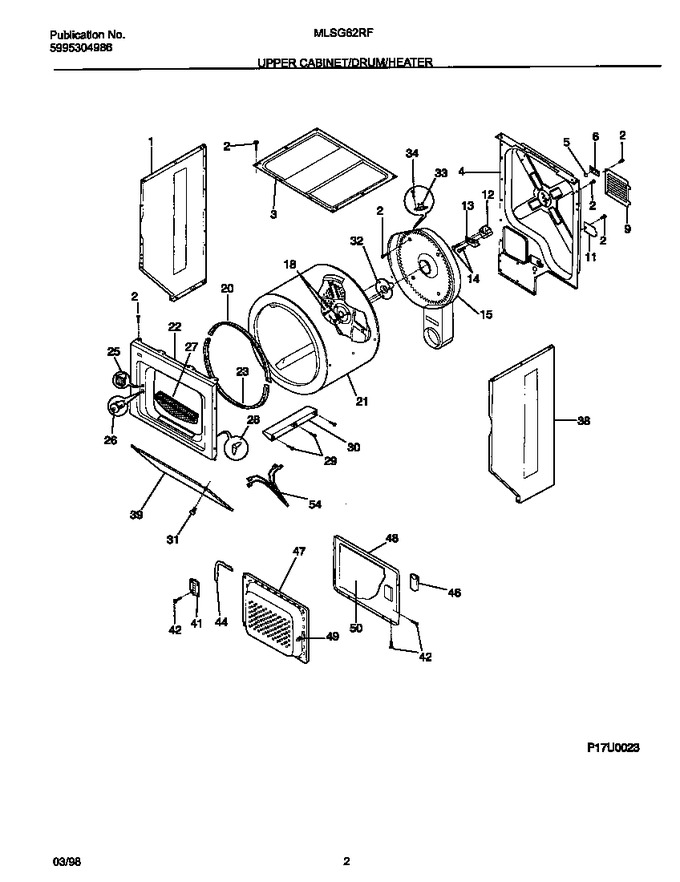

02 - Upper Cabinet/drum/heater
03 - Motor/blower/belt
04 - Control Panel
05 - Lower Cabinet/top
06 - Motor/tub
07 - Transmission
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131084700 | Panel-left Side-white |
|
$ 93.82 | |||||
| 2 | 131168200 | Screw, 8-18 X 0.31 |
|
Immediately | $ 14.18 | ||||
| 3 | 3204247 | Panel, Galvanized |
|
- | |||||
| 4 | 5303283283 | Panel-rear |
|
- | |||||
| 5 | 5303281019 | Ball |
|
$ 16.30 | |||||
| 6 | 5303281020 | Clip-ball |
|
$ 17.01 | |||||
| 9 | 3204249 | Panel-access,dryer |
|
- | |||||
| 11 | 5303207395 | Cover-term Block |
|
- | |||||
| 12 | 131825900 | Bearing-shaft (Replaces: 5303281008) |
|
Immediately | $ 10.97 | ||||
| 13 | 131724301 | Bracket-bearing (Replaces: 131724300) |
|
Immediately | $ 25.66 | ||||
| 14 | 131205400 | Screw-bracket, 10-16b X 1.375, Cr/sq Drive |
|
$ 12.76 | |||||
| 15 | 5303207394 | Housing-heat & Duct |
|
$ 385.88 | |||||
| 18 | 131168200 | Screw-shaft & Baffle, Comb Ph Ab Spcl, 10-16 X .375 (Replaces: 131477000) |
|
Immediately | $ 14.18 | ||||
| 20 | DE790 | Glide-drum (Replaces: 5303937139) |
|
Immediately | $ 40.53 | ||||
| 21 | 131427805 | Drum,dryer |
|
- | |||||
| 22 | 131636202 | Panel-front, White, Dryer |
|
- | |||||
| 23 | 5303283286 | Seal-basket Lower |
|
$ 48.04 | |||||
| 25 | 131658800 | Catch-door |
|
Immediately | $ 68.38 | ||||
| 26 | 5308001614 | Switch-door |
|
- | |||||
| 27 | WG04L05872 | Trap-lint (Replaces: 131152700) |
|
$ 90.50 | |||||
| 28 | 5303281074 | Clip-guide,(3) |
|
$ 18.27 | |||||
| 29 | 131382300 | Screw-vane, Quadrex Head, 10-14 X 1.00, Special |
|
Immediately | $ 13.46 | ||||
| 30 | 137552900 | Vane (Replaces: 5303201200) |
|
$ 54.95 | |||||
| 31 | 131202300 | Screw-, Pph Ab, 10-16 X 0.625 |
|
Immediately | $ 13.46 | ||||
| 32 | 131777700 | Shaft Assy (Replaces: 131378400) |
|
Immediately | $ 71.87 | ||||
| 33 | 5303207396 | Thermostat-safety |
|
- | |||||
| 34 | 131243700 | Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive |
|
$ 3.36 | |||||
| 38 | 131084800 | Panel-right Side-white |
|
- | |||||
| 39 | 137546910 | Panel-access-white (Replaces: 131084402) |
|
$ 184.19 | |||||
| 41 | 134222900 | Hinge-door (Replaces: 131627500) |
|
$ 22.68 | |||||
| 42 | 134156200 | Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive (Replaces: 131209600) |
|
Immediately | $ 14.89 | ||||
| 44 | 137551901 | Gasket-door (Replaces: 131129900) |
|
Immediately | $ 41.00 | ||||
| 46 | 131063600 | Handle-door-white |
|
- | |||||
| 47 | 137365110 | Door-inner, White (Replaces: 131579103) |
|
$ 229.64 | |||||
| 48 | 131579203 | Door-outer, White |
|
- | |||||
| 49 | 5303207102 | Strike Door (Replaces: 5303211430) |
|
Immediately | $ 19.85 | ||||
| 50 | 134535300 | Shield-heat (Replaces: 3204286) |
|
$ 60.25 | |||||
| 54 | 131498900 | Harness-door Switch |
|
$ 58.46 |
