View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

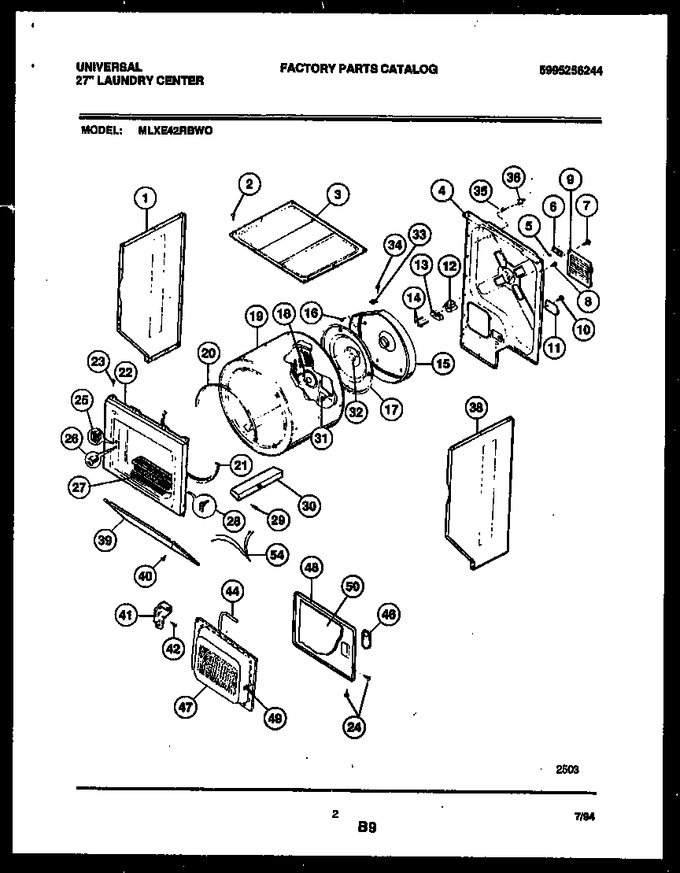

01 - Cover
02 - Laundry Body Parts
03 - Motor, Blower And Idler Arm Assembl
04 - Console And Control Parts
05 - Cabinet Parts
06 - Tub Detail
07 - Transmission Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131084701 | Left Side Pane-almd |
|
- | |||||
| 1 | 131084700 | Left Side Panel-white |
|
$ 93.82 | |||||
| 2 | 131168200 | Screw (10) |
|
Immediately | $ 14.18 | ||||
| 3 | 3204247 | Top Panel |
|
- | |||||
| 4 | 5303283283 | Rear Panel |
|
- | |||||
| 5 | 5303281019 | Ball |
|
$ 16.30 | |||||
| 6 | 5303281020 | Clip |
|
$ 17.01 | |||||
| 7 | 131168200 | Screw (2) |
|
Immediately | $ 14.18 | ||||
| 8 | 131168200 | Screw (15) |
|
Immediately | $ 14.18 | ||||
| 9 | 3204249 | Motor Access Panel |
|
- | |||||
| 10 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 11 | 3204250 | Cover-terminal Block |
|
$ 34.91 | |||||
| 12 | 131825900 | Rear Bearing (Replaces: 5303281008) |
|
Immediately | $ 10.97 | ||||
| 13 | 131724301 | Bracket-bearing (Replaces: 5303281023) |
|
Immediately | $ 25.66 | ||||
| 14 | 131205400 | Screw (2) |
|
$ 12.76 | |||||
| 15 | 3937010 | Heater Assembly (Replaces: 131234600) |
|
Immediately | $ 193.49 | ||||
| 16 | 131168200 | Screw (4) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204254 | Baffle-heater |
|
$ 129.00 | |||||
| 18 | 5303205255 | Screw-drum To Shaft Support (3) |
|
$ 5.04 | |||||
| 19 | 134138400 | Drum (Replaces: 5303283284) |
|
$ 591.10 | |||||
| 20 | DE790 | Glide-drum (Replaces: 131154800) |
|
Immediately | $ 40.53 | ||||
| 21 | 5303283286 | Felt-lower |
|
$ 48.04 | |||||
| 22 | 131150703 | Front Panel-almond |
|
- | |||||
| 22 | 131150702 | Front Panel-white |
|
- | |||||
| 23 | 131168200 | Screw-front Panel To Side Panel (2) |
|
Immediately | $ 14.18 | ||||
| 24 | 134156200 | Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive (Replaces: 131209600) |
|
Immediately | $ 14.89 | ||||
| 25 | 5366021400 | Door Catch (Replaces: 5307521419) |
|
Immediately | $ 55.99 | ||||
| 26 | 5308001614 | Door Switch |
|
- | |||||
| 27 | WG04L05872 | Lint Trap (Replaces: 131152700) |
|
$ 90.50 | |||||
| 28 | 5303281074 | Guide Clip (4) |
|
$ 18.27 | |||||
| 29 | 131382300 | Screw (6) (Replaces: 3202754) |
|
Immediately | $ 13.46 | ||||
| 30 | 137552900 | Vane (3) (Replaces: 5303201200) |
|
$ 54.95 | |||||
| 31 | 5303207393 | Screw-baffle To Drum (3) |
|
$ 6.14 | |||||
| 32 | 5303281153 | Support Shaft (Replaces: 5303281009) |
|
Immediately | $ 46.64 | ||||
| 33 | 3204267 | Safety Thermostat |
|
Immediately | $ 53.49 | ||||
| 34 | 131168200 | Screw (2) |
|
Immediately | $ 14.18 | ||||
| 35 | 08010804 | Screw (2) |
|
- | |||||
| 36 | 134120900 | Thermal Limiter (Replaces: 5303209192) |
|
Immediately | $ 13.21 | ||||
| 38 | 131084800 | Right Side Panel-white |
|
- | |||||
| 38 | 131084801 | Right Side Panel-almond |
|
- | |||||
| 39 | 131084403 | Access Panel-almd |
|
- | |||||
| 39 | 137546910 | Access Panel-white (Replaces: 131084402) |
|
$ 184.19 | |||||
| 40 | 5303207397 | Screw (2) |
|
- | |||||
| 41 | 3204275 | Upper Hinge |
|
$ 62.95 | |||||
| 42 | 3205239 | Screw-hinges To Door (4) |
|
- | |||||
| 44 | 137551901 | Door Gasket-white (Replaces: 131129900) |
|
Immediately | $ 41.00 | ||||
| 46 | 131063601 | Door Handle-almd Almond |
|
- | |||||
| 46 | 131063600 | Door Handle-white |
|
- | |||||
| 47 | 5303300245 | Inner Door-white |
|
- | |||||
| 47 | 5303300246 | Inner Door-almond |
|
- | |||||
| 48 | 3204285 | Outer Door-almond |
|
- | |||||
| 48 | 3204284 | Outer Door-white |
|
- | |||||
| 49 | 5303207102 | Door Strike (Replaces: 5303211430) |
|
Immediately | $ 19.85 | ||||
| 50 | 134535300 | Heat Shield (Replaces: 3204286) |
|
$ 60.25 | |||||
| 54 | 3205631 | Harness-door Switch |
|
- | |||||
| *46291 | 131472100 | Insulator-heat Hsg (Replaces: 5303202788) |
|
$ 60.01 | |||||
| *46291 | 3202786 | Block-terminal-heat Hsg |
|
$ 64.49 | |||||
| *46292 | 5300622034 | Coil-only-heat Hsg |
|
Immediately | $ 66.50 | ||||
| 41A | 3204276 | Lower Hinge |
|
- | |||||
| 42A | 3205239 | Screw-hinges To Front Panel (4) |
|
- |
