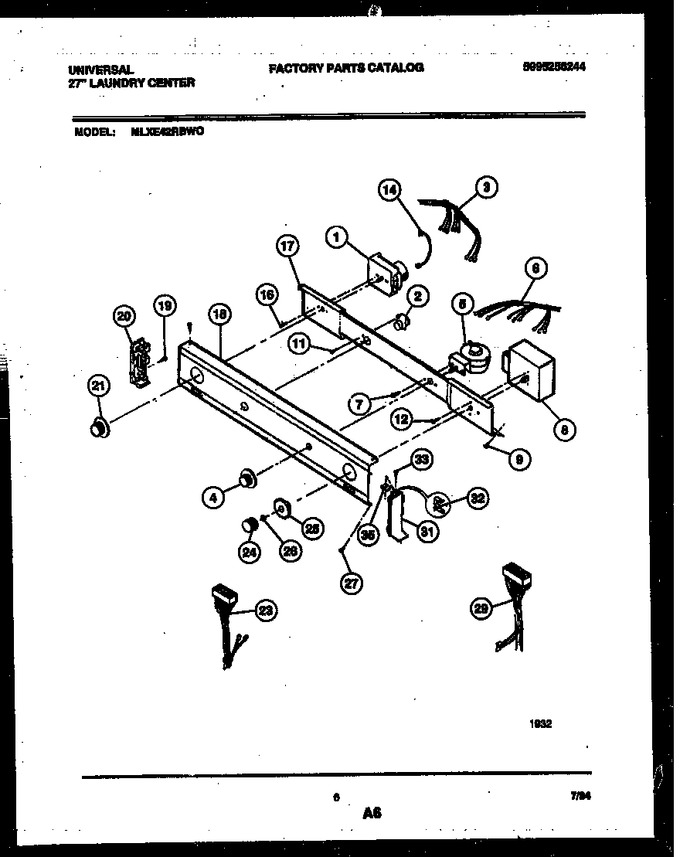

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131225300		Timer-dryer				$ 318.89
2	5303209890		Switch-start		Appelez-nous	-
3	131305700		Harness-dryer Control		Appelez-nous	-
4	131858004		Knob-rotary   (Replaces: 5303210338)			Immediately	$ 55.29
5	5303209894		Switch-water Level		Appelez-nous	-
6	131315100		Harness-washer-control		Appelez-nous	-
7	131168200		Screw			Immediately	$ 14.18
8	131314900		Timer-washer		Appelez-nous	-
9	131168200		Screw			Immediately	$ 14.18
11	218359202		Screw   (Replaces: 5303283289)				$ 10.63
12	218359202		Screw   (Replaces: 5303283289)				$ 10.63
14	131285000		Resistor-power		Appelez-nous	-
16	218359202		Screw (2)   (Replaces: 5303283289)				$ 10.63
17	131112102		Bracket-control-panel		Appelez-nous	-
18	131330000		Panel-control		Appelez-nous	-
19	131243700		Screw (4)				$ 3.36
20	5303209671		End Cap-lh		Appelez-nous	-
21	131859104		Knob-dryer Timer   (Replaces: 5303210340)			Immediately	$ 60.72
23	131305600		Harness - Dryer		Appelez-nous	-
24	5303210341		Knob-washer Timer		Appelez-nous	-
25	5303209901		Dial-washer Timer		Appelez-nous	-
26	3205248		Spacer-shaft				$ 13.02
27	3205253		Screw		Appelez-nous	-
29	131200600		Harness-washer		Appelez-nous	-
31	5303210650		End Cap-rh		Appelez-nous	-
32	3204357		Clip-grounding				$ 60.11
33	08010789		Screw (4)		Appelez-nous	-
35	5308014350		Clip (4)		Appelez-nous	-
*10465	5303210651		Pad-spacer (2)		Appelez-nous	-
