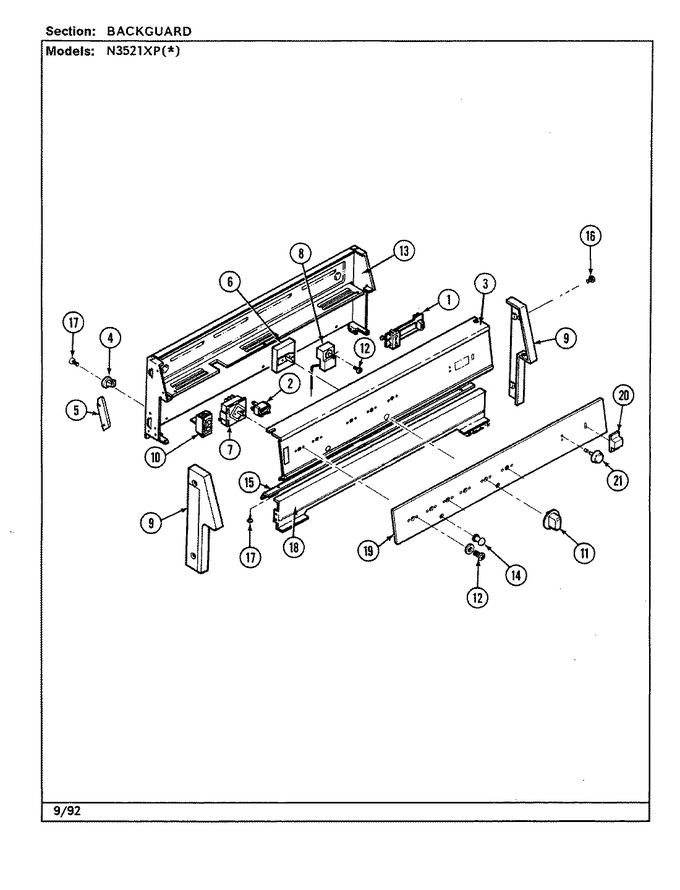

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7602P104-60 | Clock | 01 |
|
- | ||||
| 1 | 7101P293-60 | Screw | 01 |
|
- | ||||
| 2 | 7407P081-60 | Light, Indicator | 01 |
|
- | ||||
| 3 | 3801F296-51 | Bracket, Backguard | 01 |
|
- | ||||
| 3 | 2601W358-09 | Backguard (black) | 01 |
|
- | ||||
| 4 | 8010P069-60 | Spacer, Hinge (main Top) | 01 |
|
$ 8.57 | ||||
| 5 | 3807F436-45 | Support, Control Pnl (lt) | 01 |
|
- | ||||
| 5 | 3807F435-45 | Support, Control Pnl (rt) | 01 |
|
- | ||||
| 6 | WP7403P255-60 | Switch, Selector (Replaces: 7403P255-60) | 01 |
|
$ 131.41 | ||||
| 7 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 01 |
|
Immediately | $ 57.78 | |||
| 7 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 01 |
|
Immediately | $ 35.10 | |||
| 8 | 7404P081-60 | Thermostat | 01 |
|
- | ||||
| 9 | 7726P067-60 | End Cap (lt-blk) | 01 |
|
- | ||||
| 9 | 7101P032-60 | Screw | 01 |
|
- | ||||
| 9 | 7726P068-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 10 | 7403P067-60 | Switch, Rocker (blk) | 01 |
|
$ 91.35 | ||||
| 11 | 7737P032-60 | Knob, Infinite (blk) | 01 |
|
- | ||||
| 12 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 01 |
|
Immediately | $ 6.26 | |||
| 13 | 4001F085-51 | Housing | 01 |
|
- | ||||
| 14 | W11690131 | Lens, Indicator Light (Replaces: 7730P008-60) | 01 |
|
$ 6.73 | ||||
| 15 | 3604F201-80 | Shield, Sight | 01 |
|
- | ||||
| 16 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 16 | 7101P032-60 | Screw | 01 |
|
- | ||||
| 17 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 18 | 2612F036-81 | Panel, Backsplash (wht) | 01 |
|
- | ||||
| 19 | 7703P420-60 | Inlay, Trim (norge) | 01 |
|
- | ||||
| 20 | 7711P469-60 | Button, Slide (blk) | 01 |
|
- | ||||
| 21 | 7711P468-60 | Button, Set (blk) | 01 |
|
- | ||||
| 21 | 5170D118-60 | Harness, Control Panel | 01 |
|
- | ||||
| 21 | 5125A315-60 | Harness, Loose Wire | 01 |
|
- |
