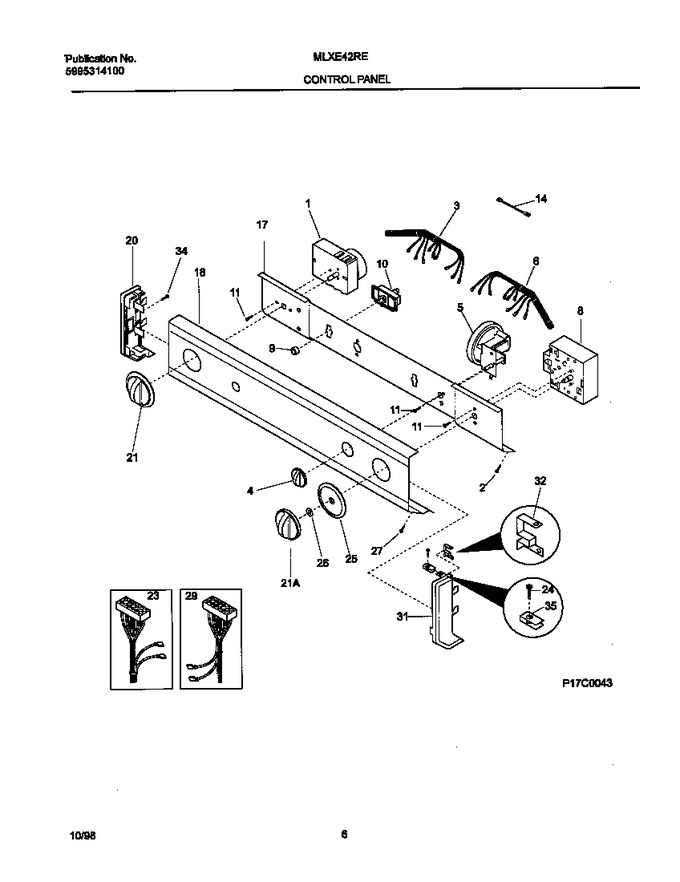

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131225300		Timer-dryer				$ 318.89
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131305700		Harness-dryer Cont		Appelez-nous	-
4	131858004		Knob-rotary   (Replaces: 5303210338)			Immediately	$ 55.29
5	134422700		Switch-pressure   (Replaces: 131692000)			Immediately	$ 98.06
6	131694400		Harness-washer Control		Appelez-nous	-
8	131437300		Timer-washer				$ 295.05
9	131111500		Knob-start Switch, Black				$ 13.55
10	131628900		Switch-push Start				$ 55.80
11	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
14	3205243		Resistor-power, 4.4k		Appelez-nous	-
17	131712602		Bracket-control		Appelez-nous	-
18	131709800		Panel-control		Appelez-nous	-
20	131288100		End Cap-lh				$ 59.85
21	5303210341		Knob-washer Timer		Appelez-nous	-
21	131859104		Knob-dryer Timer   (Replaces: 5303210340)			Immediately	$ 60.72
23	131753200		Harness-dryer Main		Appelez-nous	-
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	5303209901		Dial-timer		Appelez-nous	-
26	3205248		Spacer-timer-shaft				$ 13.02
27	3205253		Screw-end Cap, Pph B, 6-20 X .375		Appelez-nous	-
29	131778700		Harn-lwr Wshr L/c G.e.,29		Appelez-nous	-
31	131288210		End Cap-rh				$ 54.65
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
*94401	5304464772		Strap   (Replaces: 5303161300)				$ 10.63
