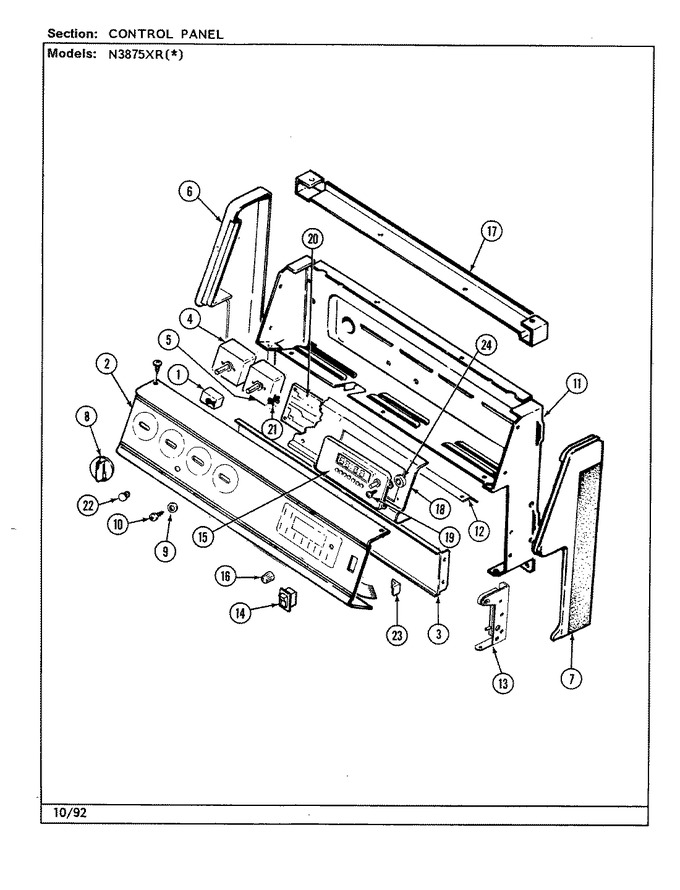

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven
05 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7407P081-60 | Light, Indicator | 01 |
|
- | ||||
| 2 | 4876S002-59 | Panel, Control Assy | 01 |
|
- | ||||
| 3 | 3802F087-51 | Brace, Lwr Bkgd | 01 |
|
- | ||||
| 4 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 01 |
|
Immediately | $ 57.78 | |||
| 5 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 01 |
|
Immediately | $ 35.10 | |||
| 6 | 7726P059-60 | End Cap (lt-blk) | 01 |
|
- | ||||
| 7 | 7726P060-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 8 | 7737P032-60 | Knob, Infinite (blk) | 01 |
|
- | ||||
| 8 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| 9 | 7101P015-60 | Screw 6-32x.625 Ty23ph | 01 |
|
- | ||||
| 10 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 01 |
|
Immediately | $ 6.26 | |||
| 11 | 4001F089-51 | Housing, Backguard | 01 |
|
- | ||||
| 12 | 3604F201-80 | Shield, Sight | 01 |
|
- | ||||
| 13 | 3807F424-51 | Support, Housing (lt) | 01 |
|
- | ||||
| 13 | 3807F423-51 | Support, Housing (rt) | 01 |
|
- | ||||
| 14 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P247-60) | 01 |
|
$ 91.35 | ||||
| 15 | 7601P171-60 | Clock | 01 |
|
- | ||||
| 16 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 01 |
|
$ 12.13 | ||||
| 17 | 4001F064-51 | Extension, Control Panel | 01 |
|
- | ||||
| 18 | 3801F263-45 | Bracket, Clock | 01 |
|
- | ||||
| 19 | WPY706189 | Screw (Replaces: 7118P019-60) | 01 |
|
Immediately | $ 6.47 | |||
| 20 | 7428P013-60 | Relay Board | 01 |
|
- | ||||
| 21 | 8004P020-60 | Support, Relay Board | 01 |
|
- | ||||
| 22 | W11690131 | Lens, Indicator Light (Replaces: 7730P008-60) | 01 |
|
$ 6.73 | ||||
| 23 | 8010P083-60 | Spacer | 01 |
|
- | ||||
| 24 | 8010P002-60 | Spacer, Handle | 01 |
|
- | ||||
| 24 | 5170D122-60 | Harness Bkgd | 01 |
|
- | ||||
| 24 | 5170P123-60 | Harness Sensor | 01 |
|
- | ||||
| 24 | 5175D062-60 | Harness, Cooktop | 01 |
|
- | ||||
| 24 | 5170P124-60 | Harness Ctrl To Relay | 01 |
|
- | ||||
| 25 | 8113P021-60 | Manual, Use & Care | 01 |
|
- |
