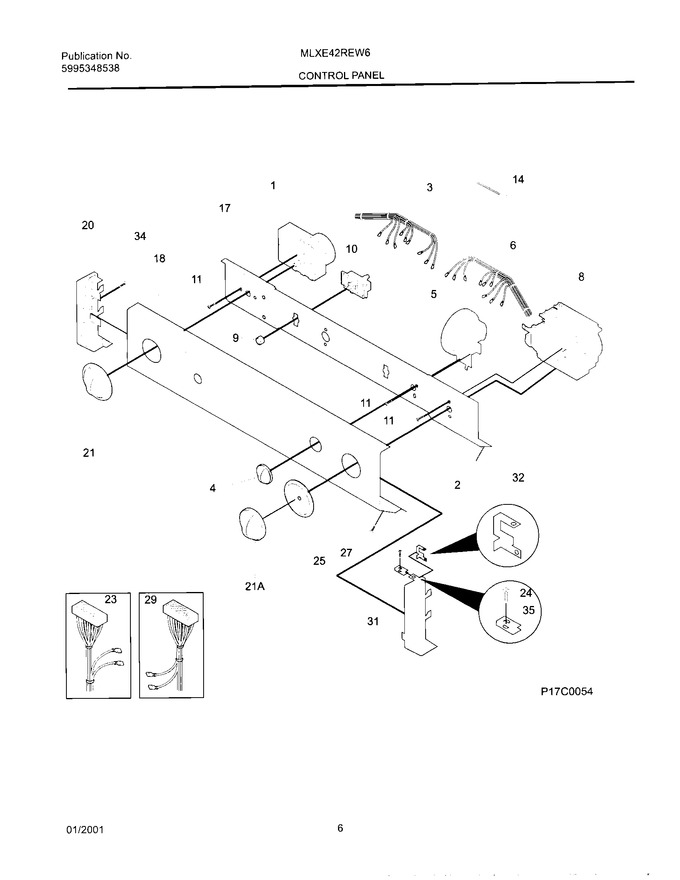

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131225300		Timer-dryer				$ 318.89
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131305700		Harness-dryer Cont		Appelez-nous	-
4	131858004		Knob-rotary Black/white M2   (Replaces: 131858000)			Immediately	$ 55.29
5	134422700		Switch-pressure   (Replaces: 131692000)			Immediately	$ 98.06
6	131987900		Lcw Control Harn W/o Temp Sw		Appelez-nous	-
8	131964100		Timer Elec H Mallory-delta			Immediately	$ 279.77
9	131111500		Knob-start Switch, Black				$ 13.55
10	131628900		Switch-push Start				$ 55.80
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
14	3205243		Resistor-power, 4.4k		Appelez-nous	-
17	131983400		Brkt-cont Mtg Weld Push/start		Appelez-nous	-
18	131709800		Panel-control		Appelez-nous	-
20	131288100		End Cap-lh				$ 59.85
21	131859104		Asmy-timer Knb/ind Blk/wht M2   (Replaces: 131859100)			Immediately	$ 60.72
21	131977000		Knob-blk-lc Wsh Timer M2				$ 41.63
23	131753200		Harness-dryer Main		Appelez-nous	-
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	131976701		Pointer-blk/wht Ind-lc Wshr M2		Appelez-nous	-
27	131892100		Scr 6-20x.230 Pph B Pt		Appelez-nous	-
29	131778800		Harn-lwr Wshr		Appelez-nous	-
31	131288210		End Cap-rh				$ 54.65
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
NI	5304464772		Strap   (Replaces: 5303161300)				$ 10.63
NI	131535100		Asmy-bezel Black		Appelez-nous	-
