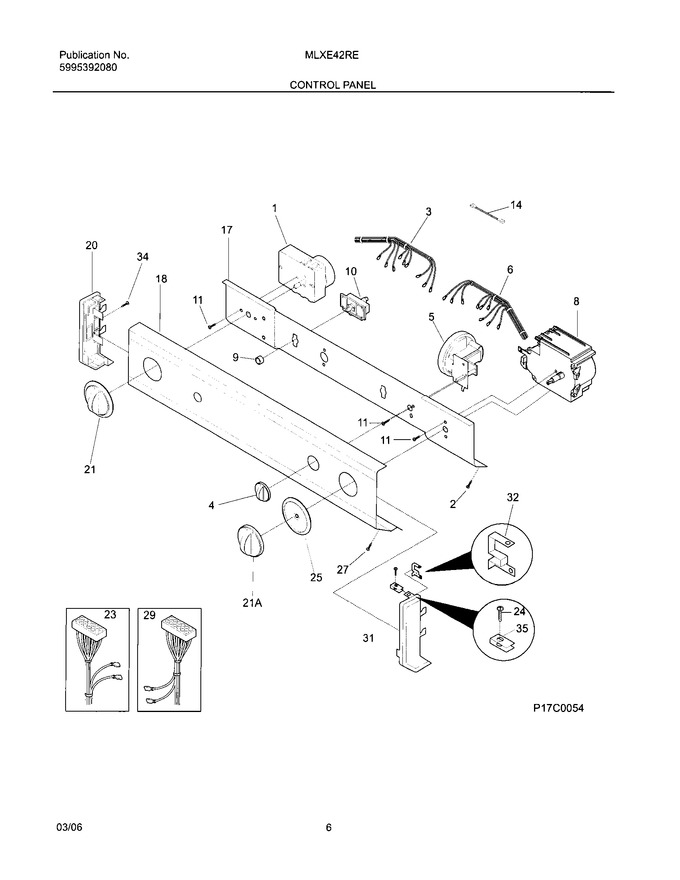

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
4	131858004		Knob,rotary ,black/white   (Replaces: 131858000)			Immediately	$ 55.29
9	131111500		Knob-start Switch, Black				$ 13.55
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
14	3205243		Resistor,power ,4.4 Kilohm ,with Terminal		Appelez-nous	-
17	131983410		Bracket-control Mtg		Appelez-nous	-
18	131709800		Panel,trimplate ,console Front		Appelez-nous	-
20	131288100		End Cap,black ,lh				$ 59.85
21	131859104		Knob,dryer Timer ,black/white ,black Indicator   (Replaces: 131859100)			Immediately	$ 60.72
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	131976701		Pointer,timer ,black ,white Indicator		Appelez-nous	-
27	3205253		Screw,pan Head ,6-20b X 0.375		Appelez-nous	-
27	131892100		Screw,6-20b X 0.230		Appelez-nous	-
31	131288210		End Cap,black ,rh ,without Cut Out				$ 54.65
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
35	5308014350		Clip,end Cap Mtg ,u-type		Appelez-nous	-
21A	131977000		Knob,washer Timer ,black				$ 41.63
F1	131225300		Timer,3-off				$ 318.89
F10	131628900		Switch-push Start				$ 55.80
F23	134119400		Wiring Harness,main				$ 280.25
F29	134113400		Wiring Harness,washer ,lower		Appelez-nous	-
F3	131305700		Wiring Harness,dryer Control		Appelez-nous	-
F5	134422700		Switch,pressure ,3 Posn, 1/2 Hp   (Replaces: 131692000)			Immediately	$ 98.06
F6	134121100		Wiring Harness,washer Control ,w/o Temp Switch		Appelez-nous	-
F8	131964100		Timer,washer			Immediately	$ 279.77
NI	134101400		Terminal Block,main   (Replaces: 5303937016)			Immediately	$ 55.99
NI	5304464772		Strap,plastic   (Replaces: 5303161300)				$ 10.63
NI	131535100		Bezel,nameplate ,black		Appelez-nous	-
NI	5303208586		Screw,terminal Block ,(3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
