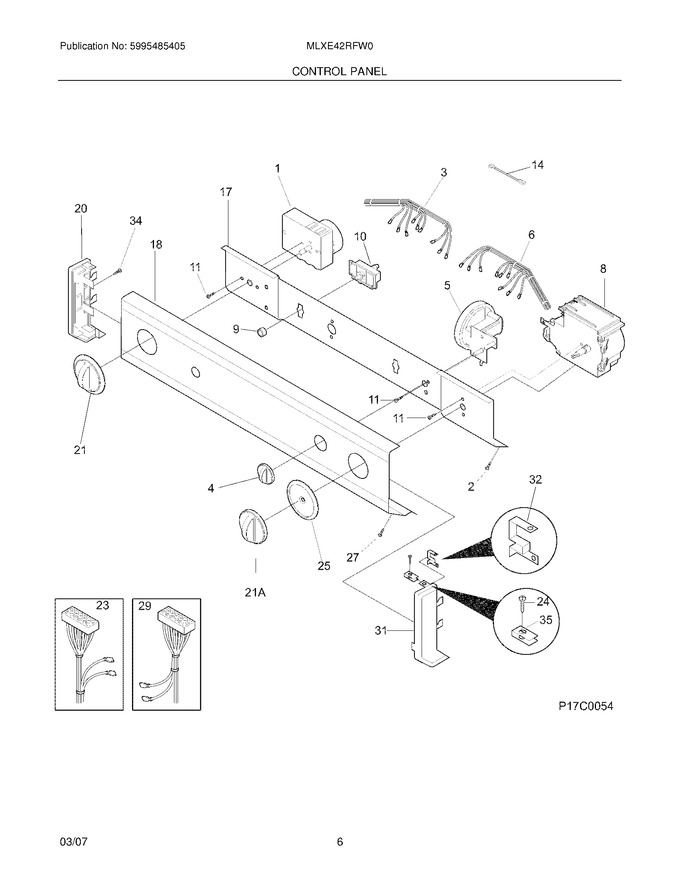

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
4	131858004		Knob,rotary ,black/white   (Replaces: 131858000)			Immediately	$ 55.29
5	134422700		Switch,pressure ,3 Position ,3/4 Hp			Immediately	$ 98.06
9	131111500		Button,start Switch ,black				$ 13.55
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	134263400		Bracket,control Mount		Appelez-nous	-
18	131709800		Panel,trimplate ,console Front		Appelez-nous	-
20	131288100		End Cap,black ,lh				$ 59.85
21	131859104		Knob,dryer Timer ,black/white ,black Indicator   (Replaces: 131859100)			Immediately	$ 60.72
23	134605500		Wiring Harness,main				$ 144.64
24	134156200		Screw,flat Head ,8-18ab X 0.44 ,quad Drive			Immediately	$ 14.89
25	131976701		Pointer,timer ,black ,white Indicator		Appelez-nous	-
27	3205253		Screw,pan Head ,6-20b X 0.375		Appelez-nous	-
31	131288210		End Cap,black ,rh ,without Cut Out				$ 54.65
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
35	5308014350		Clip,end Cap Mtg ,u-type		Appelez-nous	-
21A	131977000		Knob,washer Timer ,black				$ 41.63
F1	131225300		Timer,3-off				$ 318.89
F10	131628900		Switch-push Start				$ 55.80
F14	134446800		Resistor,power				$ 66.68
F29	134689400		Wiring Harness,washer ,2spd				$ 343.77
F3	131305700		Wiring Harness,dryer Control		Appelez-nous	-
F6	134542400		Wiring Harness,washer Control ,w/o Temp Switch				$ 74.71
F8	131964100		Timer,washer			Immediately	$ 279.77
NI	131535100		Bezel,nameplate ,black		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
