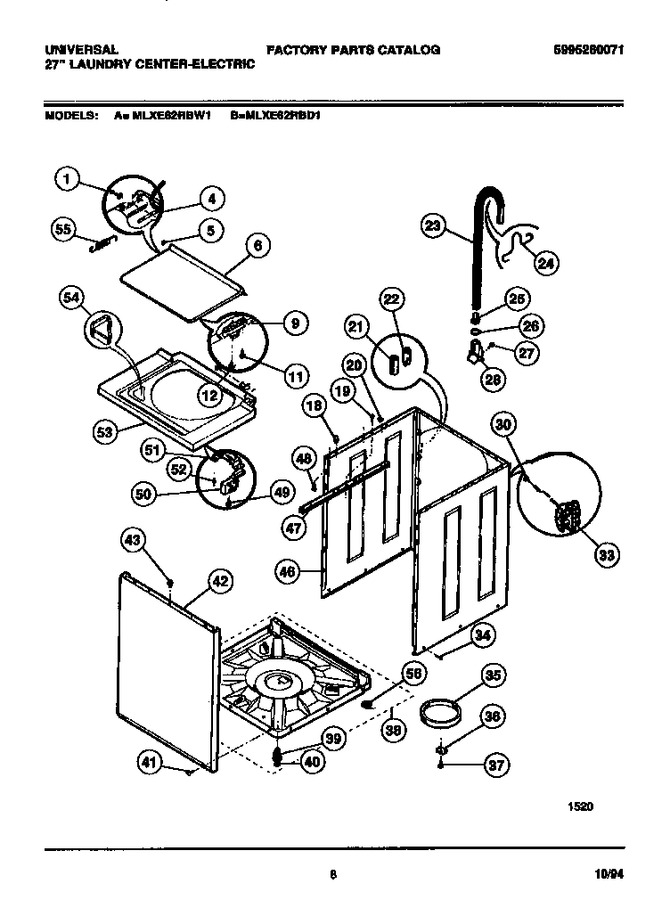

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303211089 | Screw (2) |
|
- | |||||
| 4 | 5304489657 | Hinge Bar (Replaces: 3205250) |
|
$ 82.93 | |||||
| 5 | 3204362 | Grommet |
|
- | |||||
| 6 | 5303212873 | Lid-almond |
|
- | |||||
| 9 | 131390000 | Lid Strike (Replaces: 3204367) |
|
$ 55.19 | |||||
| 11 | 3204368 | Screw (2) |
|
$ 13.01 | |||||
| 12 | 134075500 | Bumper (2) (Replaces: 3204369) |
|
$ 17.35 | |||||
| 18 | 131346400 | Locating Pin (2) |
|
$ 12.44 | |||||
| 19 | 131168200 | Screw (2) |
|
Immediately | $ 14.18 | ||||
| 20 | 3204374 | Slide Pin (2) |
|
$ 78.67 | |||||
| 21 | 5308014903 | Capacitor |
|
- | |||||
| 22 | 5303161252 | Bracket-capacitor |
|
- | |||||
| 23 | 131210200 | Drain Hose |
|
$ 59.21 | |||||
| 24 | 5303204987 | Retainer |
|
- | |||||
| 25 | 3204375 | Check Valve |
|
$ 48.06 | |||||
| 26 | 131127616 | Clamp |
|
- | |||||
| 27 | 131205100 | Screw |
|
Immediately | $ 14.18 | ||||
| 28 | 3204376 | Coupler |
|
- | |||||
| 30 | 131202300 | Screw |
|
Immediately | $ 13.46 | ||||
| 33 | 13125800 | Water Valve |
|
- | |||||
| 34 | 131205500 | Screw (7) |
|
$ 13.46 | |||||
| 35 | 5308002385 | Snubber Ring |
|
$ 54.86 | |||||
| 36 | 3204380 | Shipping Block |
|
$ 12.29 | |||||
| 37 | 131102900 | Shipping Screw |
|
- | |||||
| 38 | 5303300247 | Base Assembly |
|
- | |||||
| 39 | 5303272067 | Leveling Leg & Pad |
|
- | |||||
| 40 | 5303004083 | Pad-leveling Leg |
|
- | |||||
| 41 | 131302800 | Screw (Replaces: 131258400) |
|
Immediately | $ 26.58 | ||||
| 42 | 5303931754 | Panel Front - Almond |
|
- | |||||
| 43 | 131346401 | Locating Pin |
|
Immediately | $ 16.63 | ||||
| 46 | 5303931758 | Body-almond |
|
- | |||||
| 47 | 131106701 | Bracket- Rh |
|
- | |||||
| 50 | 3205646 | Lid Lock |
|
- | |||||
| 51 | 5303306138 | Bracket-lid Lock |
|
- | |||||
| 52 | 08002420 | Rivet (3) |
|
- | |||||
| 53 | 5303212875 | Panel Top-almond |
|
- | |||||
| 54 | 3204394 | Bleach Dispenser |
|
$ 59.96 | |||||
| 55 | 134890500 | Spring-assist (Replaces: 5303212876) |
|
$ 19.85 | |||||
| 56 | 131422200 | Pad-self Level (2) Leg (2) (Replaces: 5303293754) |
|
Immediately | $ 56.70 | ||||
| 47A | 131091001 | Bracket- Lh |
|
- |
