SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:

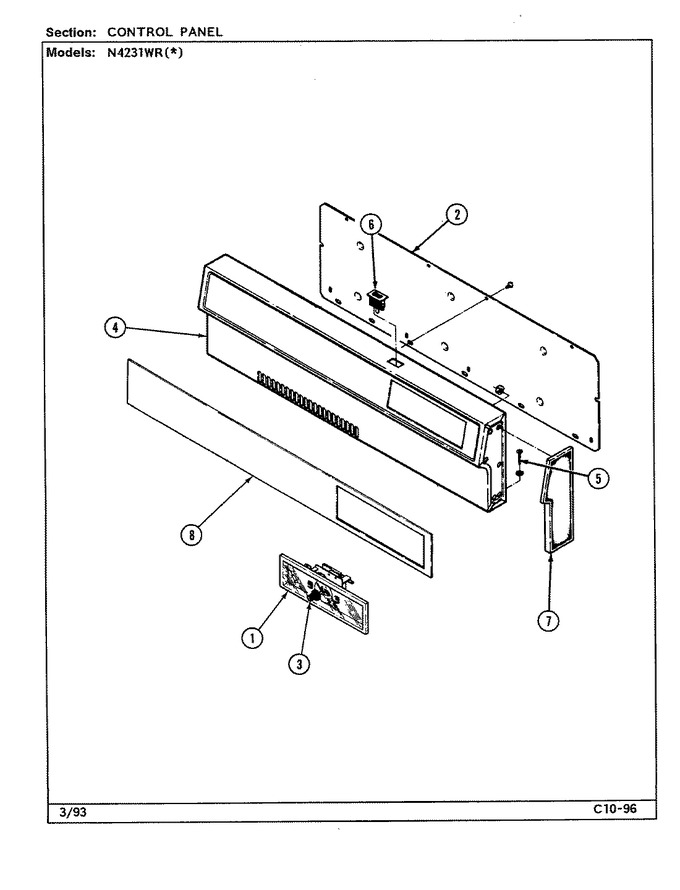

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7602P100-60 | Clock | 1 |
|
- | ||||
| 2 | 4005F036-80 | Shield | 1 |
|
- | ||||
| 3 | 7711P126-60 | Knob, Clock | 1 |
|
- | ||||
| 4 | 2601W346-84 | Backguard | 1 |
|
- | ||||
| 4 | 2601W346-81 | Backguard | 1 |
|
- | ||||
| 5 | 7101P022-60 | Screw, Special | 1 |
|
- | ||||
| 6 | 7403P242-60 | Switch, Light | 1 |
|
- | ||||
| 7 | 7726P014-60 | Trim | 1 |
|
- | ||||
| 7 | 7726P003-60 | Trim | 1 |
|
- | ||||
| 8 | 8112P065-60 | Manual, Use & Care | 1 |
|
- | ||||
| 8 | 7703P183-60 | Trim, Bkgd | 1 |
|
- | ||||
| 8 | 5180D136-60 | Upper Harness | 1 |
|
- | ||||
| 8 | 3802F014-80 | Brace | 1 |
|
- |
