01 - Control Panel
02 - Door
03 - Gas Controls
04 - Oven Light & Wiring
05 - Oven/body
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

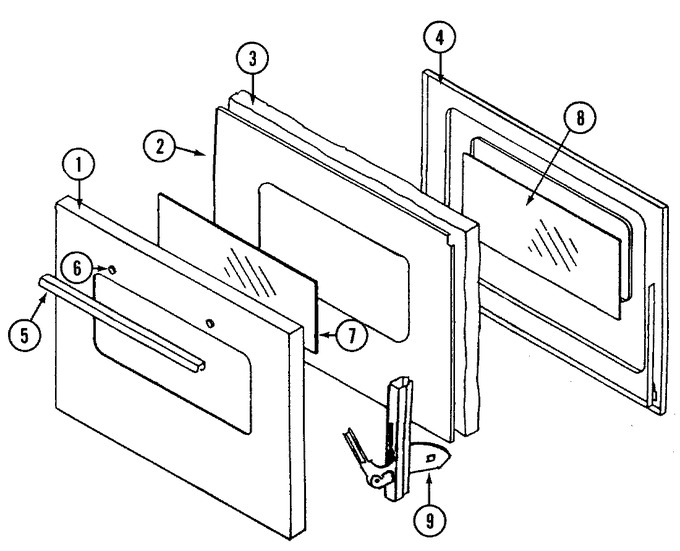

| 1 | 72001084 | Panel, Door (alm) | 10 |
|
- | ||||
| 1 | W11233072 | Screw (Replaces: Y707347) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 72001086 | Baffle, Door | 10 |
|
- | ||||
| 3 | 72001087 | Insulation, Door | 10 |
|
- | ||||
| 4 | 72001088 | Lining, Door | 10 |
|
- | ||||
| 5 | 72001089 | Handle, Door | 10 |
|
- | ||||
| 5 | WP3400074 | Screw (Replaces: 7101P068-60) | 10 |
|
$ 6.47 | ||||
| 6 | 8010P020-60 | Spacer, Door Handle | 10 |
|
- | ||||
| 7 | 72001090 | Glass, Inner/outer | 10 |
|
- | ||||
| 8 | 72001090 | Glass, Inner/outer | 10 |
|
- | ||||
| 9 | 72001091 | Hinge, Door | 10 |
|
- |
