SELECT A DIAGRAM

01 - 30978 Transmission Assy Components


02 - 33227 Transmission Assy Components


03 - Agitator, Drive Bell & Seal Kit


04 - Brg Hsg/brake/pulley & Pivot Dome


05 - Cab Top/loading Dr & Ctrl Hood Rear Pan


06 - Front Panel, Cabinet & Base

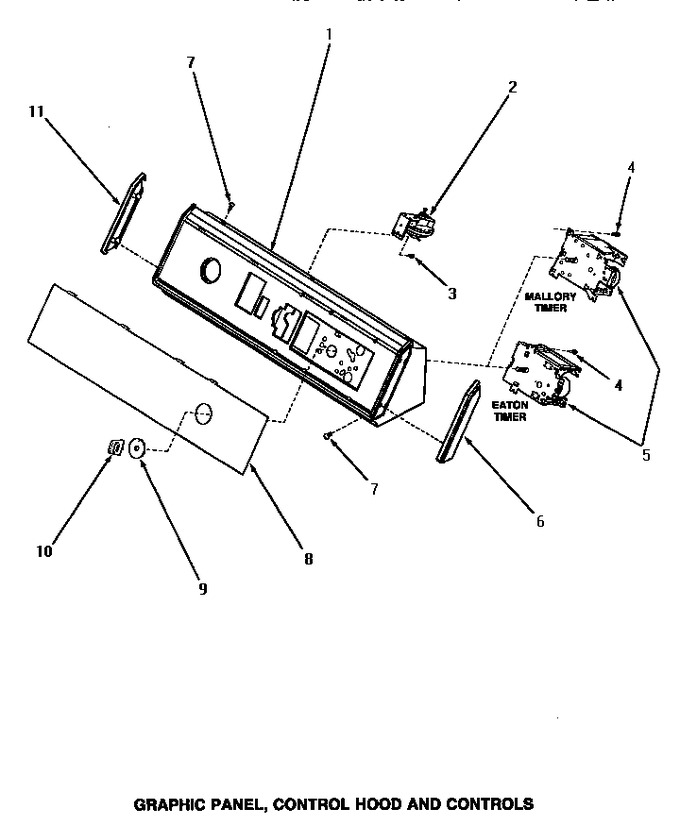

07 - Graphic Panel, Control Hood & Controls


08 - Hoses/back Fl Preventer & Vlv Brkt


09 - Lint Filter, Washtub & Hub


10 - Loading Door Switch & Bracket Assy


11 - Mixing Valve Assy


12 - Mixing Valve Assy


13 - Motor, Mtg Bracket, Belts & Idler Assy


14 - Outer Tub, Cover & Pressure Hose


15 - Power Cord & Wire Terminals


16 - Pump Assy/brkt/hoses & Siphon Break Kit


17 - Special Tools


18 - Special Tools


19 - Transmission Assy & Balance Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31811		Assy,hood & Mounting B		Appelez-nous	-
2	28615		Switch,pressure		Appelez-nous	-
3	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
4	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
5	31238		Timer,2 Cycle		Appelez-nous	-
6	31250		End Cap, Right			Immediately	$ 8.99
7	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
8	31204		Panel,graphic		Appelez-nous	-
9	31267		Assy,timer Skirt & Rin		Appelez-nous	-
10	31281		Assy,knob-timer-black				$ 13.55
11	31251		Cap/ Black Left Hand		Appelez-nous	-
	NOTE:		The Individual Motors Are Not Available Separately, Order Complete Motor Assemblies.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
