SELECT A DIAGRAM

01 - Cover


02 - Upper Cabinet/drum/heater


03 - Motor/blower/belt

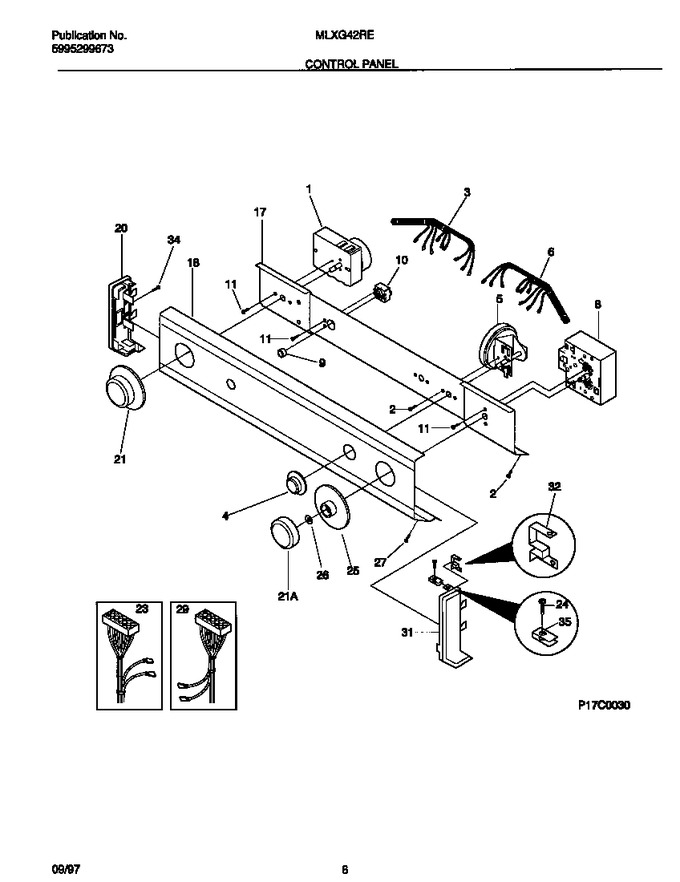

04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131225400		Timer		Appelez-nous	-
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131323300		Harness-dryer Cont.		Appelez-nous	-
4	131858004		Knob-rotary   (Replaces: 5303210338)			Immediately	$ 55.29
5	5303209894		Switch - Pressure		Appelez-nous	-
6	131449600		Harness-washer Cont		Appelez-nous	-
8	131437300		Timer-washer				$ 295.05
9	131111500		Knob-start Switch, Black				$ 13.55
10	131628900		Switch-push Start				$ 55.80
11	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
17	131622902		Bracket-control		Appelez-nous	-
18	131624200		Panel-control		Appelez-nous	-
20	131288100		End Cap-lh				$ 59.85
21	131859104		Knob-dryer Timer   (Replaces: 5303210340)			Immediately	$ 60.72
21	5303210341		Knob-washer Timer		Appelez-nous	-
23	131491400		Harness-dryer		Appelez-nous	-
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	5303209901		Dial-timer		Appelez-nous	-
26	3205248		Spacer-timer-shaft				$ 13.02
27	3205253		Screw-end Cap, Pph B, 6-20 X .375		Appelez-nous	-
29	131520800		Harness-washer		Appelez-nous	-
31	131288210		End Cap-rh				$ 54.65
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
*63764	131209800		Clamp-sw. Pressure				$ 65.92
*63765	5304464772		Strap   (Replaces: 5303161300)				$ 10.63

    View Diagram in Separate Window       Print Part List
